Rear Compartment Lid Lock Cylinder Replacement

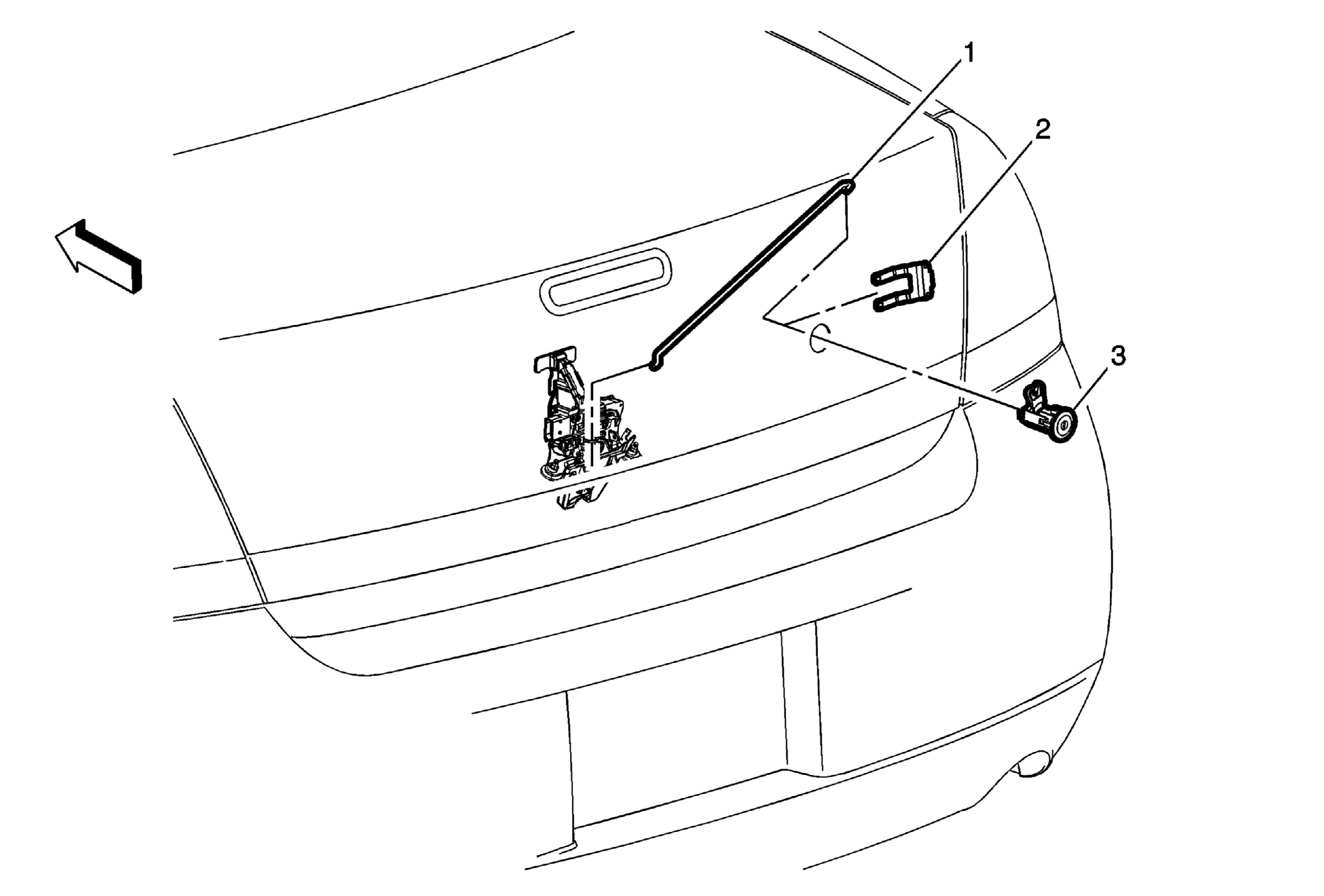

Fig 1: Rear Compartment Lid Lock Cylinder Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Lid Lock Cylinder Rod Procedure Disconnect the lock cylinder rod from the latch and the lock cylinder.
2	Rear Compartment Lid Lock Cylinder Retainer Clip CAUTION: Refer to Fastener Caution . Procedure Disconnect the retainer clip from the lock cylinder.
3	Rear Compartment Lid Lock Cylinder Procedure Remove the lock cylinder from the rear compartment. Ensure the lock cylinder rod is installed properly. Inspect the lock cylinder for proper operation by closing and opening the rear compartment.

Callout

Component Name

Rear Compartment Lid Lock Cylinder Rod
Procedure
Disconnect the lock cylinder rod from the latch and the lock cylinder.

Rear Compartment Lid Lock Cylinder Retainer Clip

CAUTION:

Procedure
Disconnect the retainer clip from the lock cylinder.

Rear Compartment Lid Lock Cylinder

Procedure

Remove the lock cylinder from the rear compartment.
Ensure the lock cylinder rod is installed properly.
Inspect the lock cylinder for proper operation by closing and opening the rear compartment.
