Rear Compartment Lid Latch Replacement

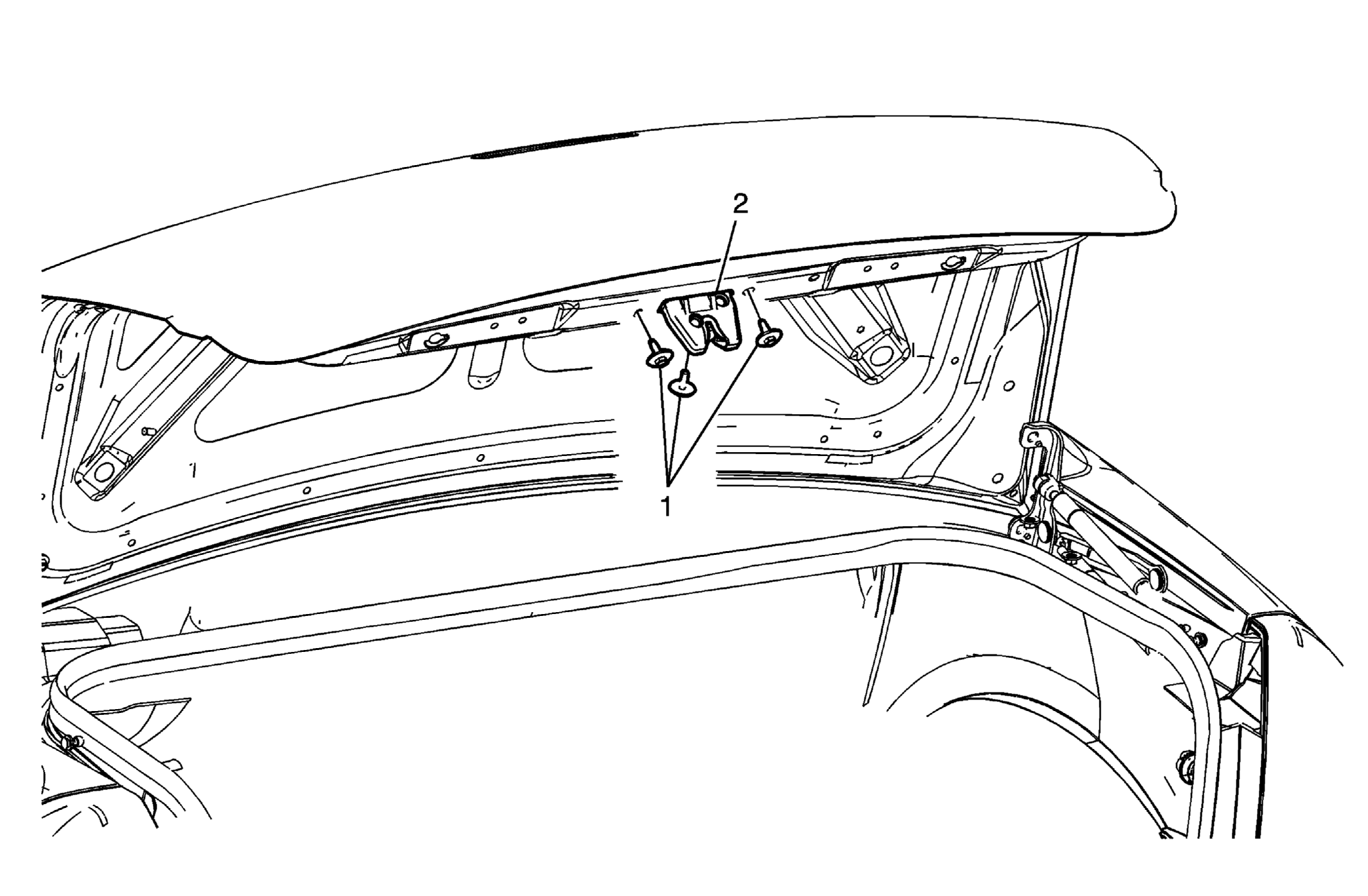

Fig 1: Rear Compartment Lid Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Latch Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Rear Compartment Latch TIP:  Disconnect the electrical connection.
