Rear Compartment Latch Striker Replacement

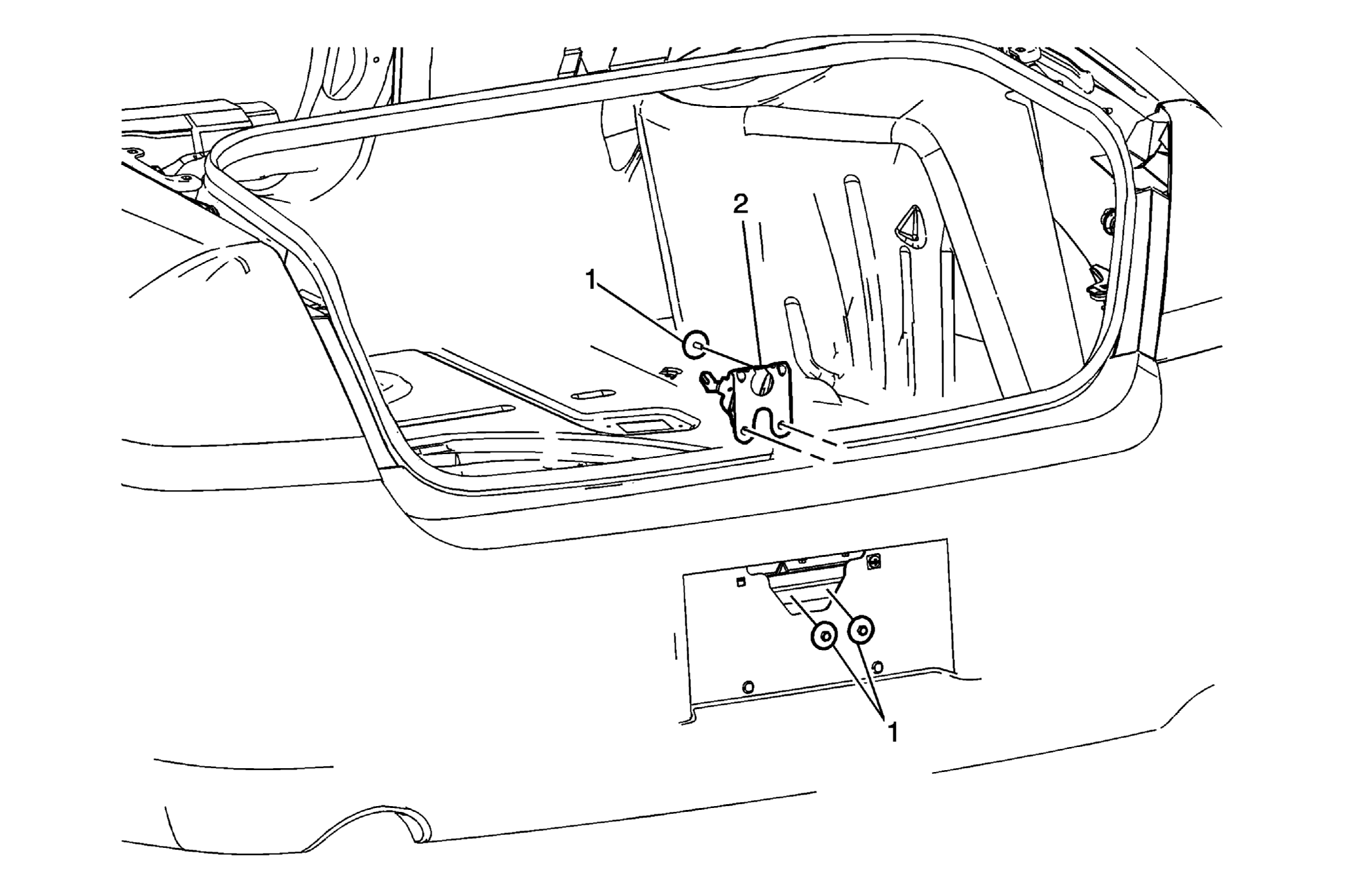

Fig 1: Rear Compartment Latch Striker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Sill Trim Plate Replacement .
1	Latch Striker Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  25 N.m (19 lb ft)
2	Rear Compartment Lid Latch Striker TIP:  Remove the licence plate to gain access to the 2 outer bolts.
