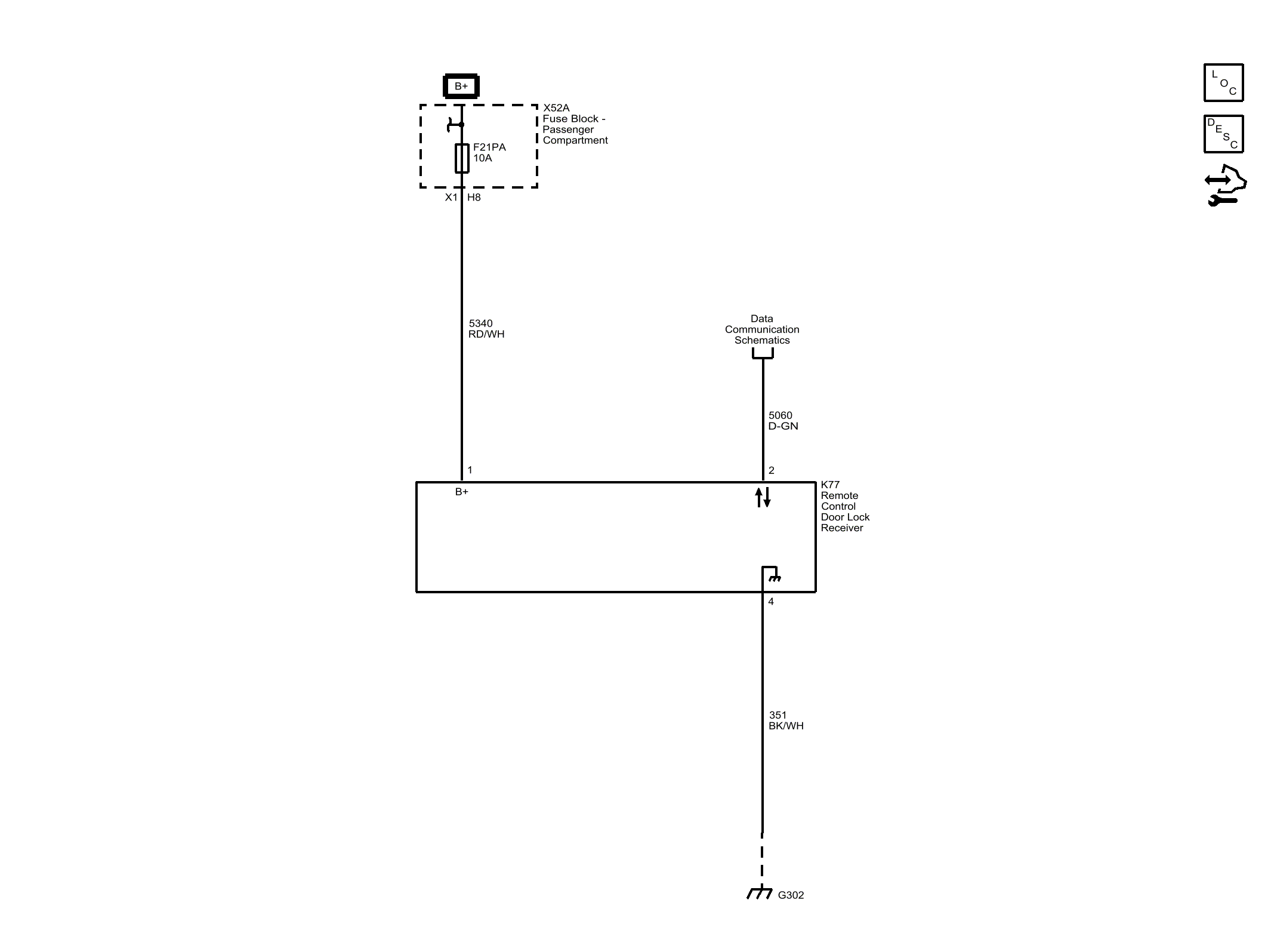

Home >> Chevrolet >> 2015 >> Express 2500 LS, 4.8L Eng VIN F >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry
