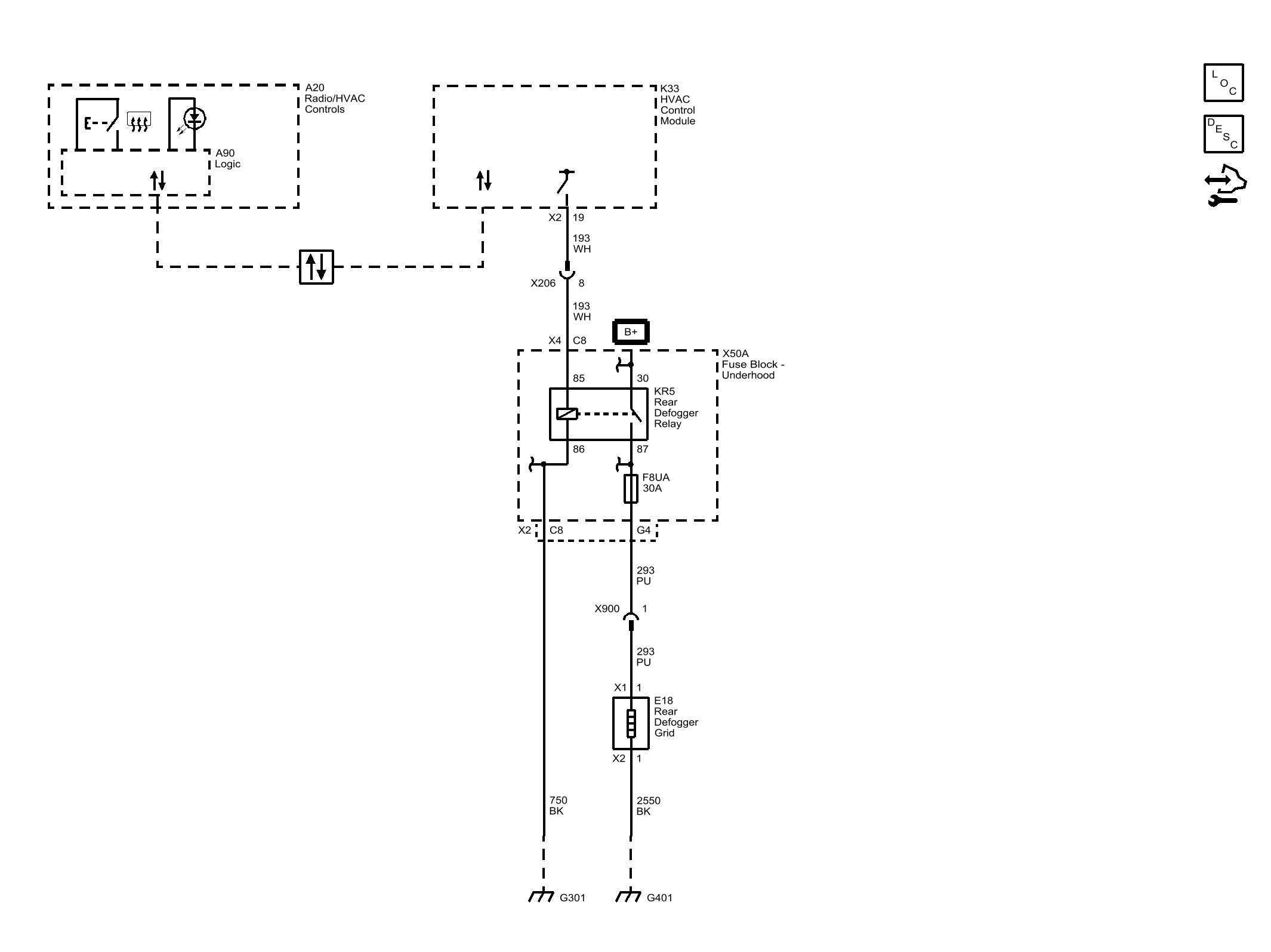

Home >> Chevrolet >> 2015 >> Equinox LS, AWD, Gas >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger
