Installation Procedure

  1. Install a NEW secondary air injection check valve gasket (1).

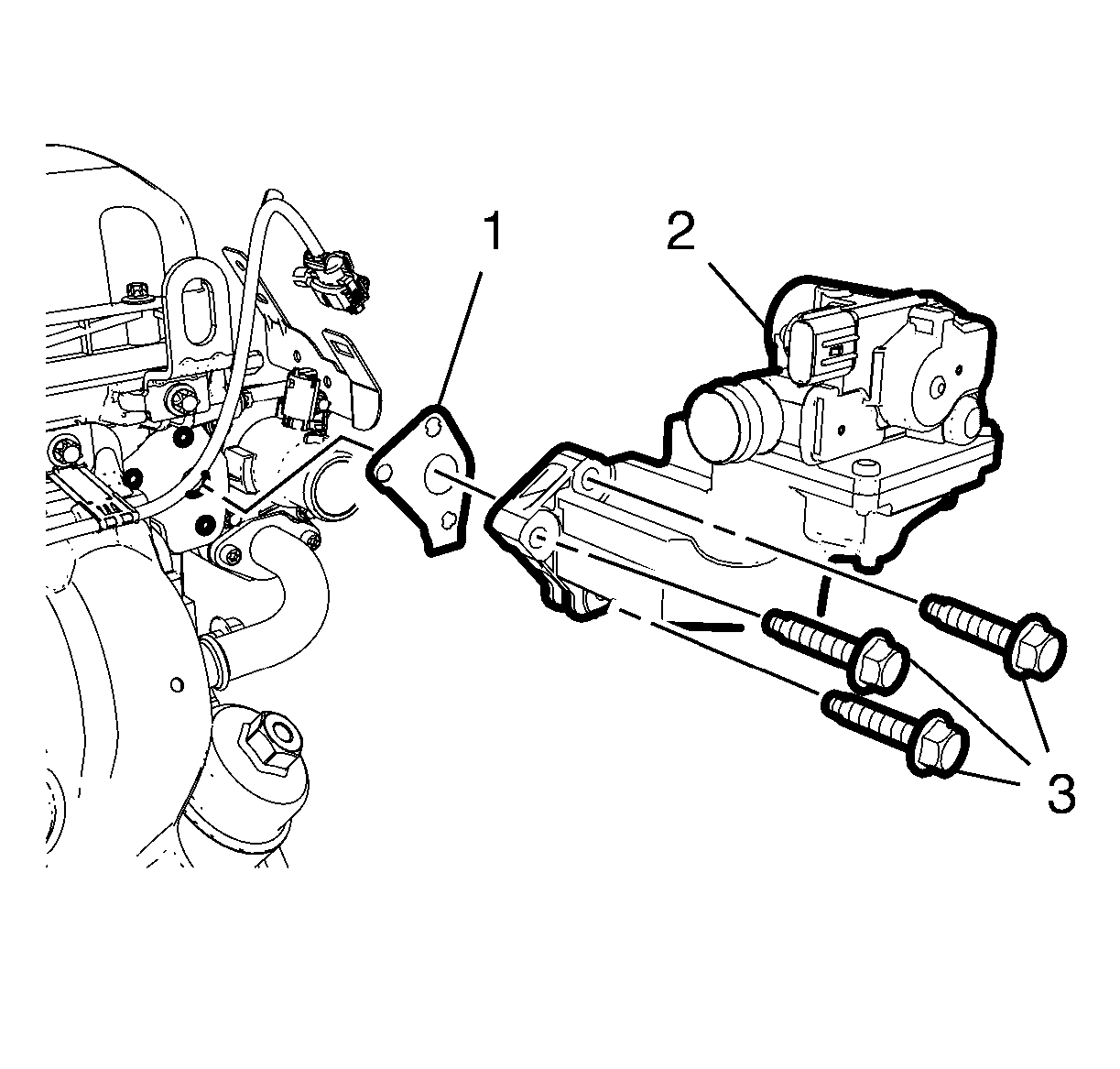

    Fig 1: Secondary Air Injection Check Valve Bolts
    GM2781590Courtesy of GENERAL MOTORS COMPANY
  2. Install the secondary air injection check valve (2).
  3. Install the 3 secondary air injection check valve bolts (3) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Connect the secondary air injection pump pipe (1) to the secondary air injection check valve (2). Refer to Plastic Collar Quick Connect Fitting Service .

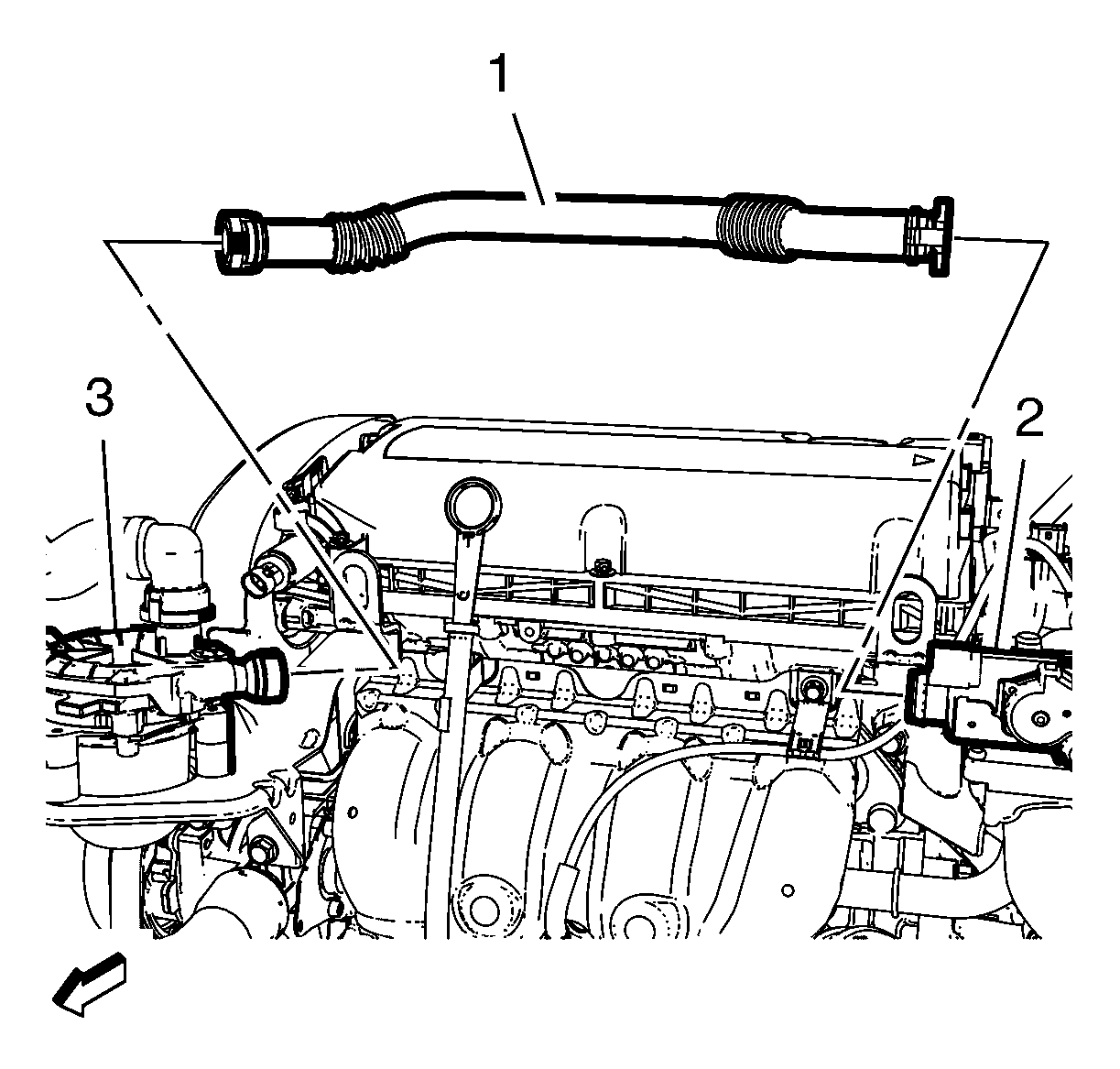

    Fig 2: Secondary Air Injection Pump Pipe
    GM2834332Courtesy of GENERAL MOTORS COMPANY
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
