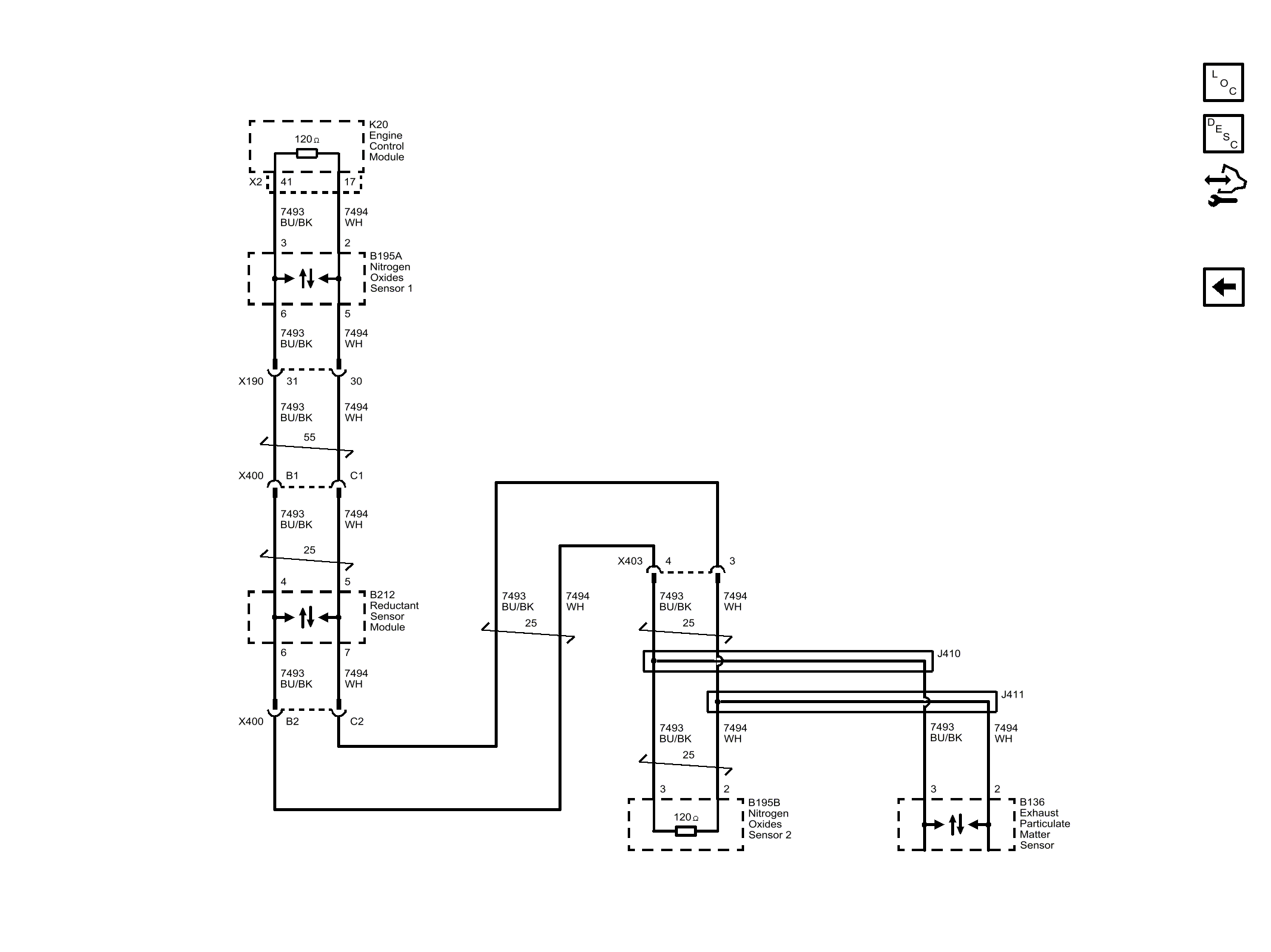

Home >> Chevrolet >> 2015 >> Cruze Diesel >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Powertrain Expansion Bus (LUZ)
