Linear Interconnect Network (LIN) Serial Data

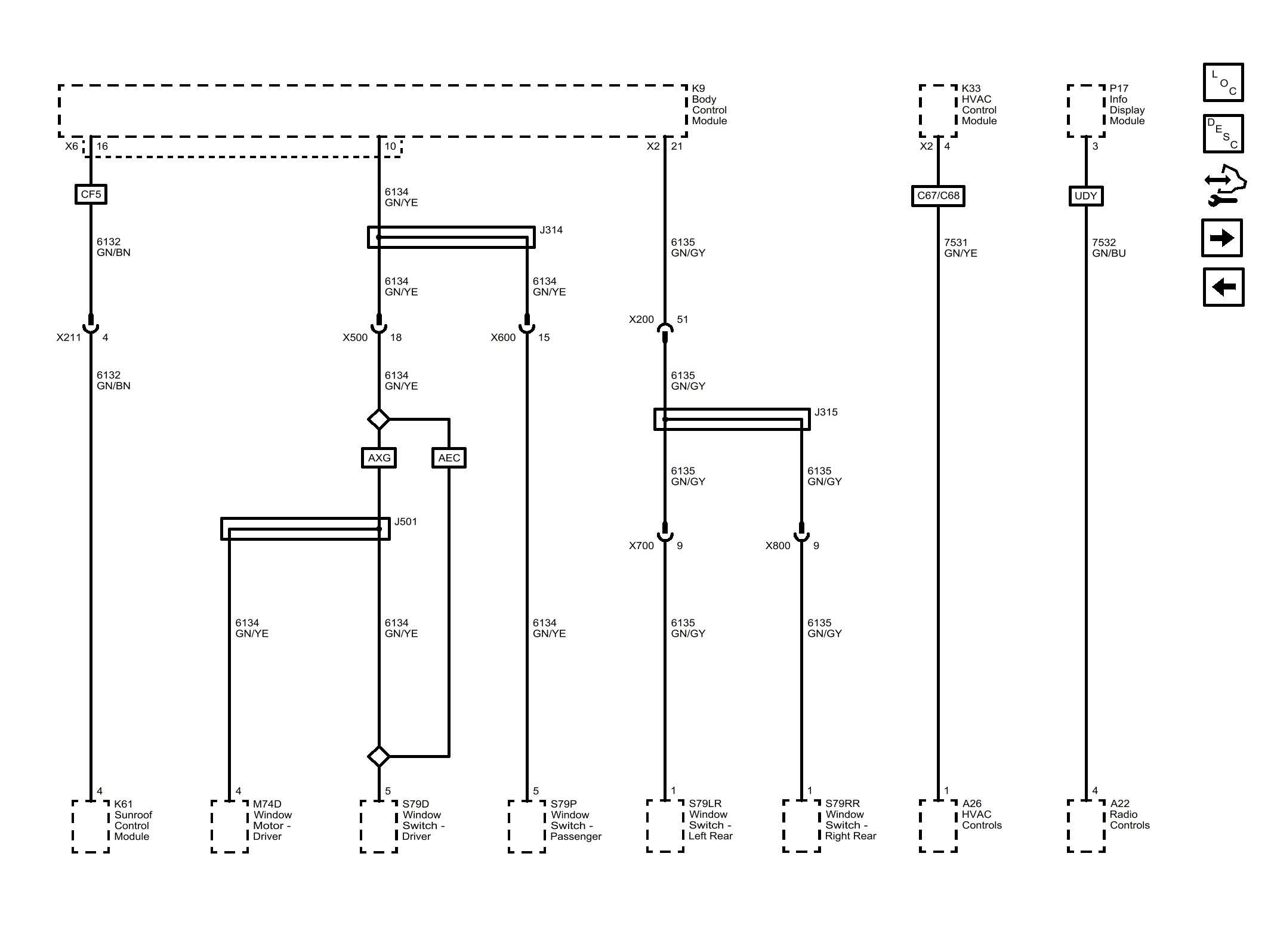

Fig 1: Linear Interconnect Network (LIN) Serial Data

GM3814484

Courtesy of GENERAL MOTORS COMPANY
