Audio Disc Player Receptacle Replacement

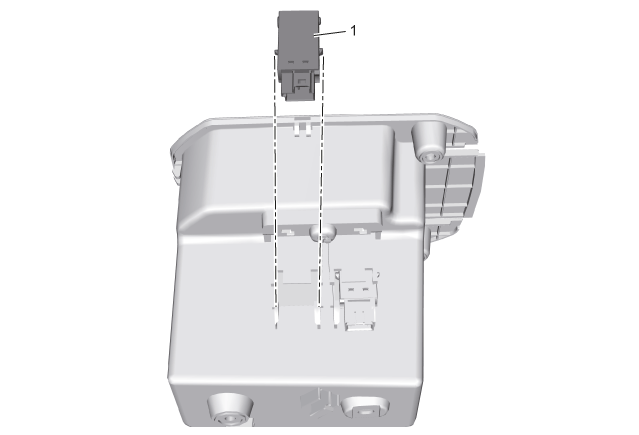

Fig 1: Audio Disc Player Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Audio Disc Player Receptacle Procedure  Press the 2 retaining tabs to remove.
