Front Seat Belt Buckle Replacement

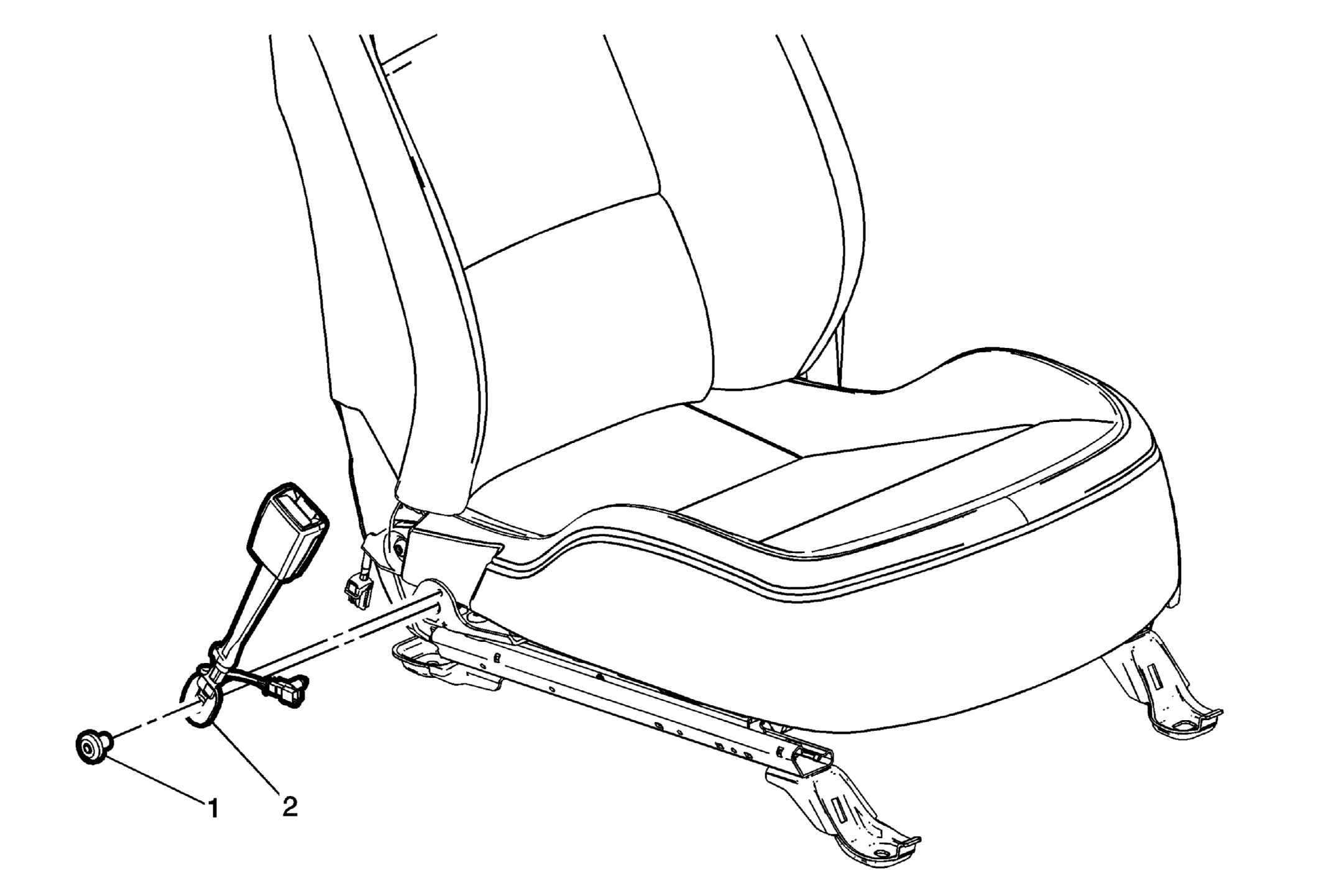

Fig 1: Front Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1	Front Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Buckle Procedure Disconnect the electrical connector.
