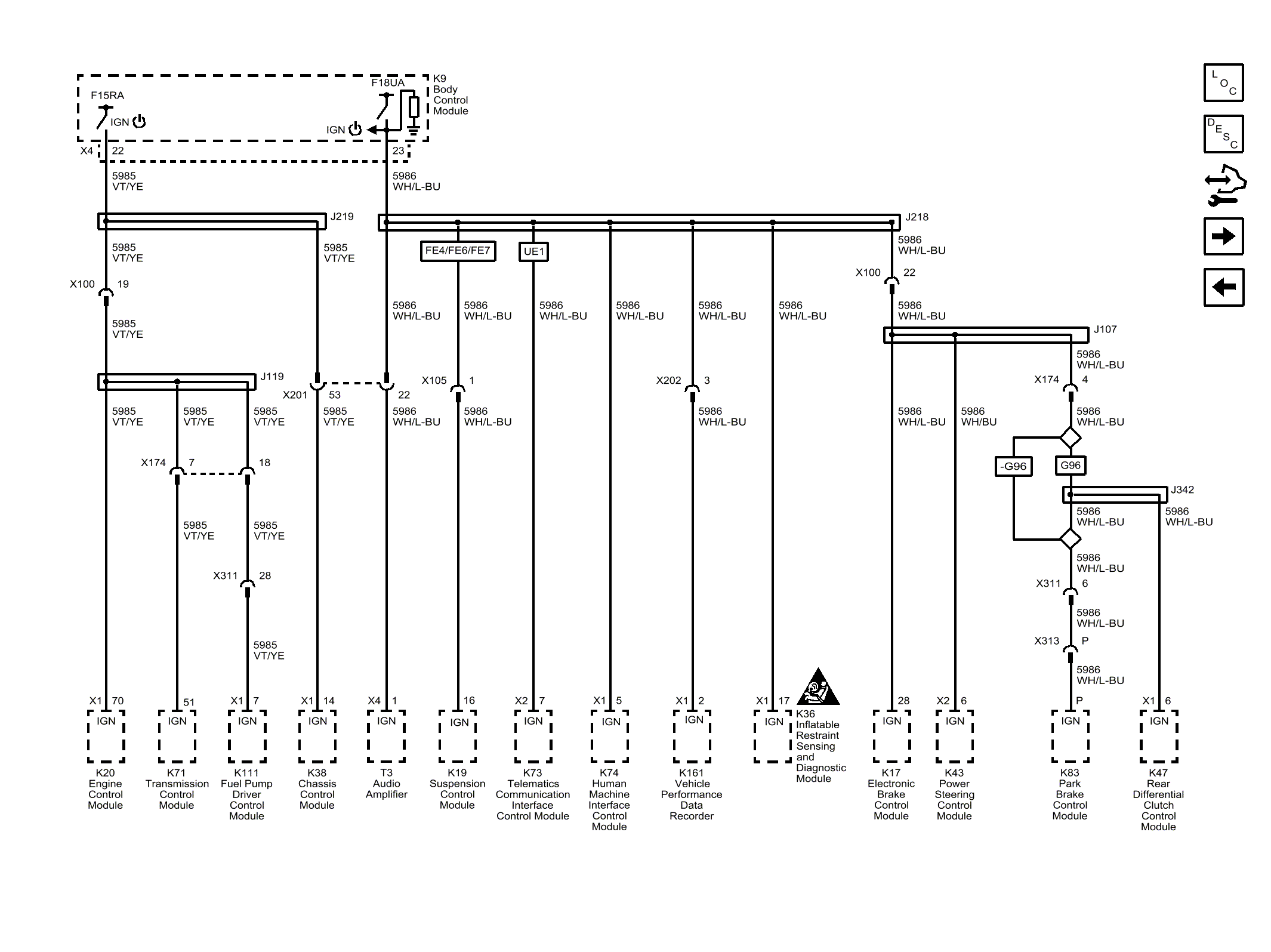

Home >> Chevrolet >> 2015 >> Corvette Z06, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> GMLAN Communication Enable
