Ignition Lock Cylinder Replacement

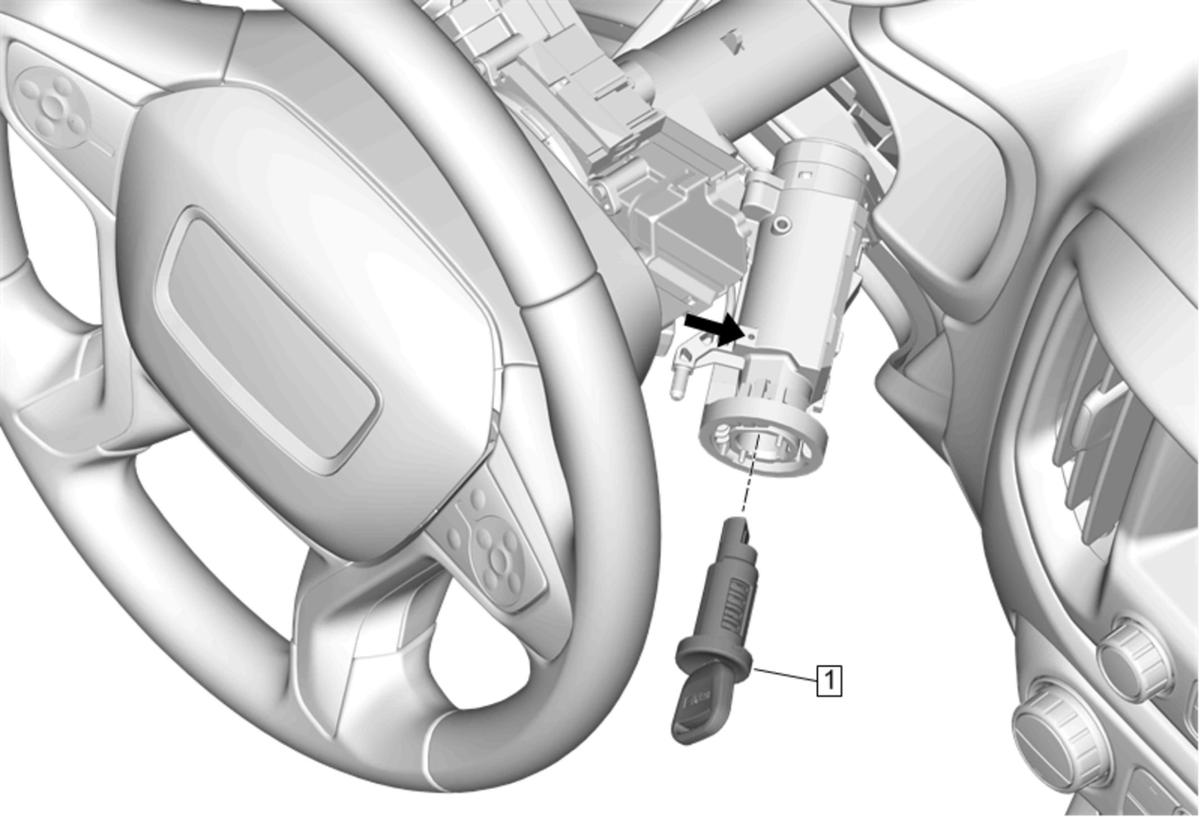

Fig 1: Ignition Lock Cylinder
GM3688932Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Battery Negative Cable Disconnection and Connection
  2. Steering Column Upper Trim Cover Replacement
1 Ignition Lock Cylinder

Procedure

  1. Turn the ignition key to the RUN position.
  2. Insert a pick-type tool into the proper hole on the ignition and start switch housing and press the lock tab on the ignition lock cylinder down while turning the cylinder to the START position.
  3. Pull the ignition lock cylinder out of the ignition and start switch housing.
  4. Code the NEW ignition lock cylinder. Lock Cylinder Coding - Ignition
