Steering Gear Heat Shield Replacement

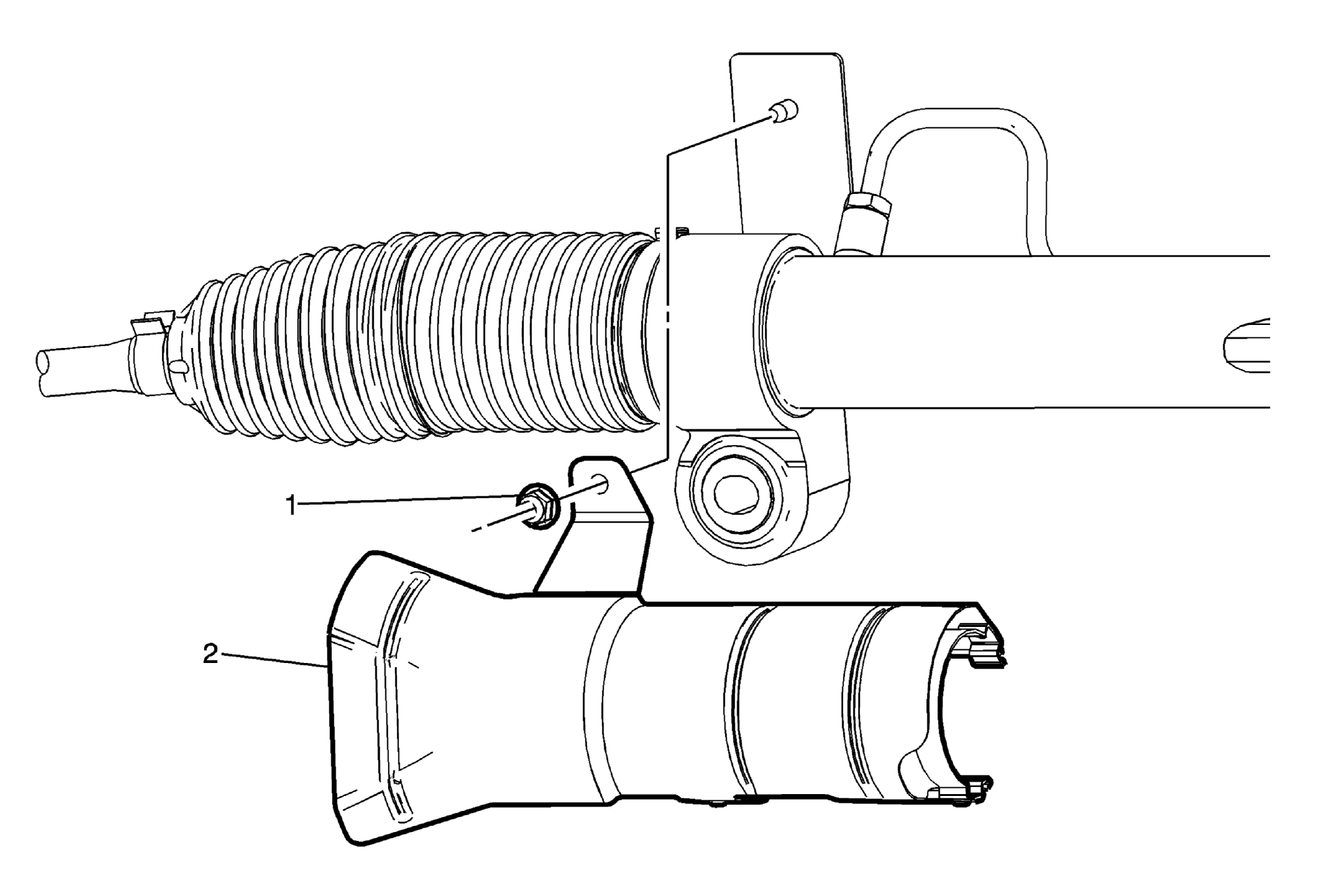

Fig 1: Steering Gear Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Steering Gear Heat Shield Nut CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Steering Gear Heat Shield
