Rear Side Door Window Channel Retainer Replacement

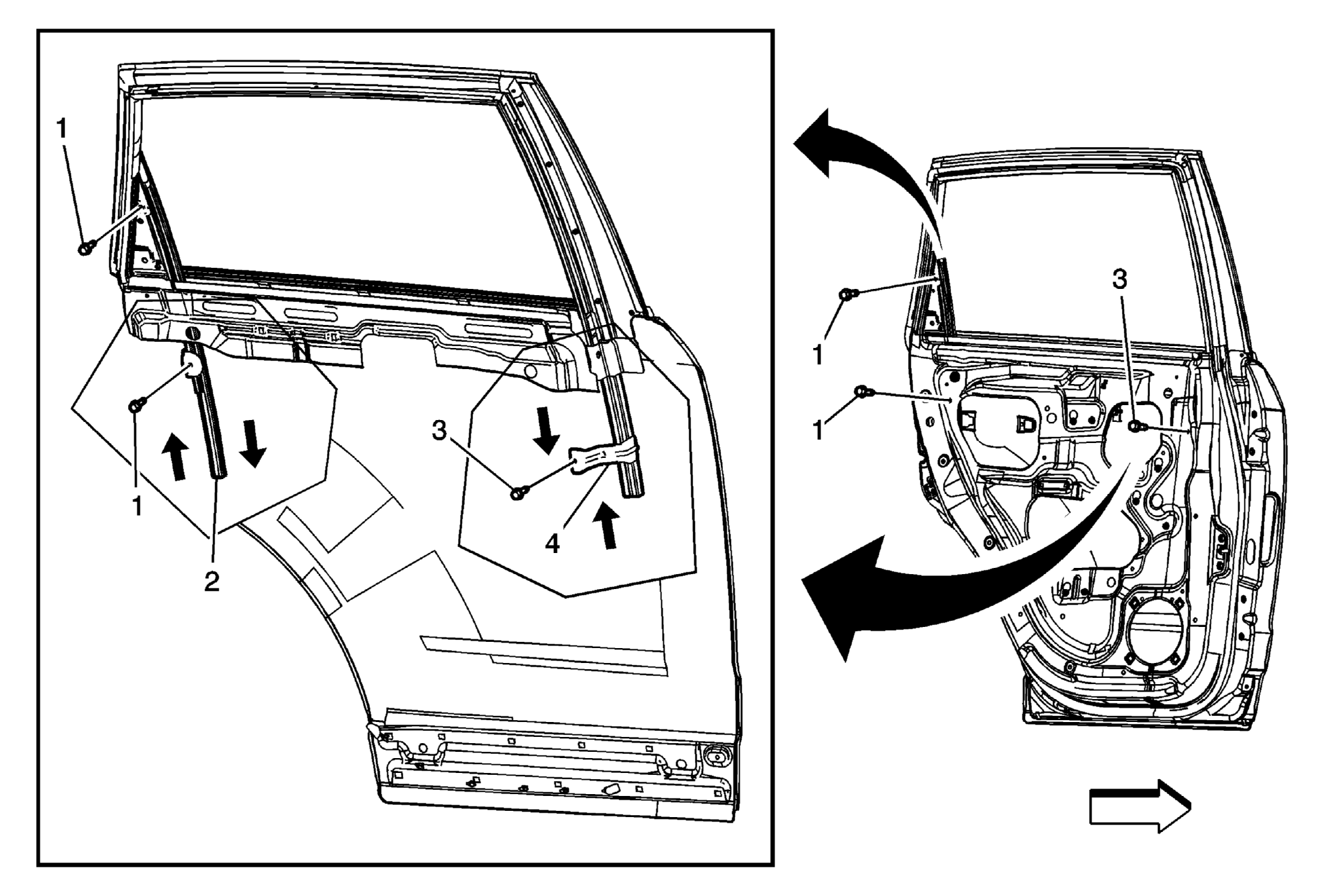

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement . |
|
| 1 | Rear Side Door Rear Window Weatherstrip Channel Retainer Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Rear Side Door Rear Window Weatherstrip Channel Retainer TIP: Pull the weatherstrip out of the channel, remove the channel retainer from the door. |
| 3 | Rear Side Door Front Window Weatherstrip Channel Retainer Bolts Tighten 10 N.m (89 lb in) |
| 4 | Rear Side Door Front Window Weatherstrip Channel Retainer TIP: Pull the weatherstrip out of the channel, remove the channel retainer from the door. |
