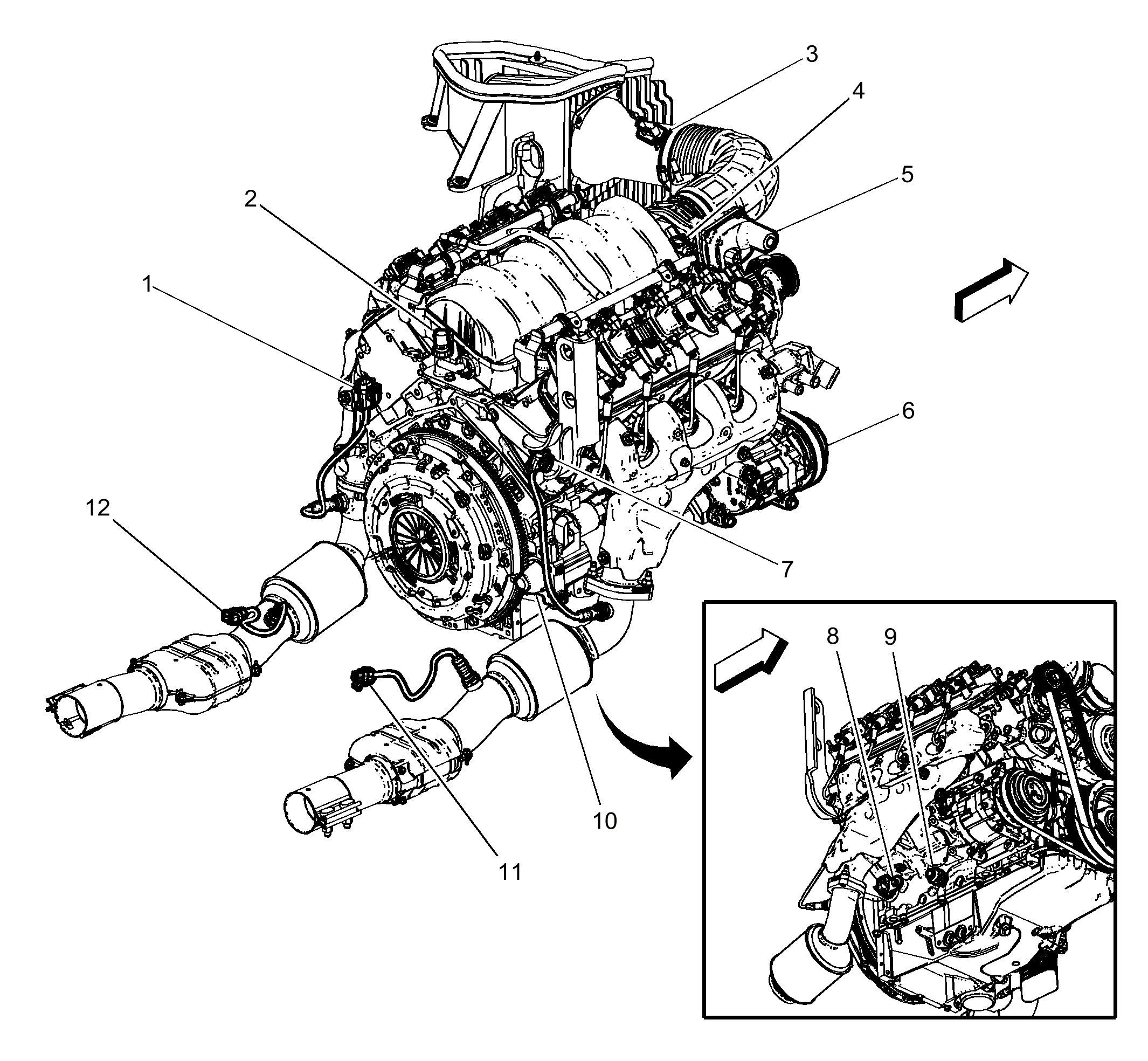

Right Rear of Engine (LS7)
Right Rear of Engine (LS7)
| Items |
| 1: B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (L99, LS3, LSA, or LS7) |
| 2: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (L99, LS3, LSA, or LS7) |
| 3: B75B Mass Air Flow/Intake Air Temperature Sensor (L99, LS3, LSA, or LS7) B75B Mass Air Flow/Intake Air Temperature Sensor (L99, LS3, LSA, or LS7) |
| 4: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LS7) |
| 5: Q38 Throttle Body Q38 Throttle Body (L99, LS3, LSA, or LS7) |
| 6: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 7: B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (L99, LS3, LSA, or LS7) |
| 8: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L99, LS3, LSA, or LS7) |
| 9: B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 10: M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2 |
| 11: B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (L99, LS3, LSA, or LS7) |
| 12: B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (L99, LS3, LSA, or LS7) |
Courtesy of GENERAL MOTORS COMPANY
