Object Detection Schematics Rear View Camera

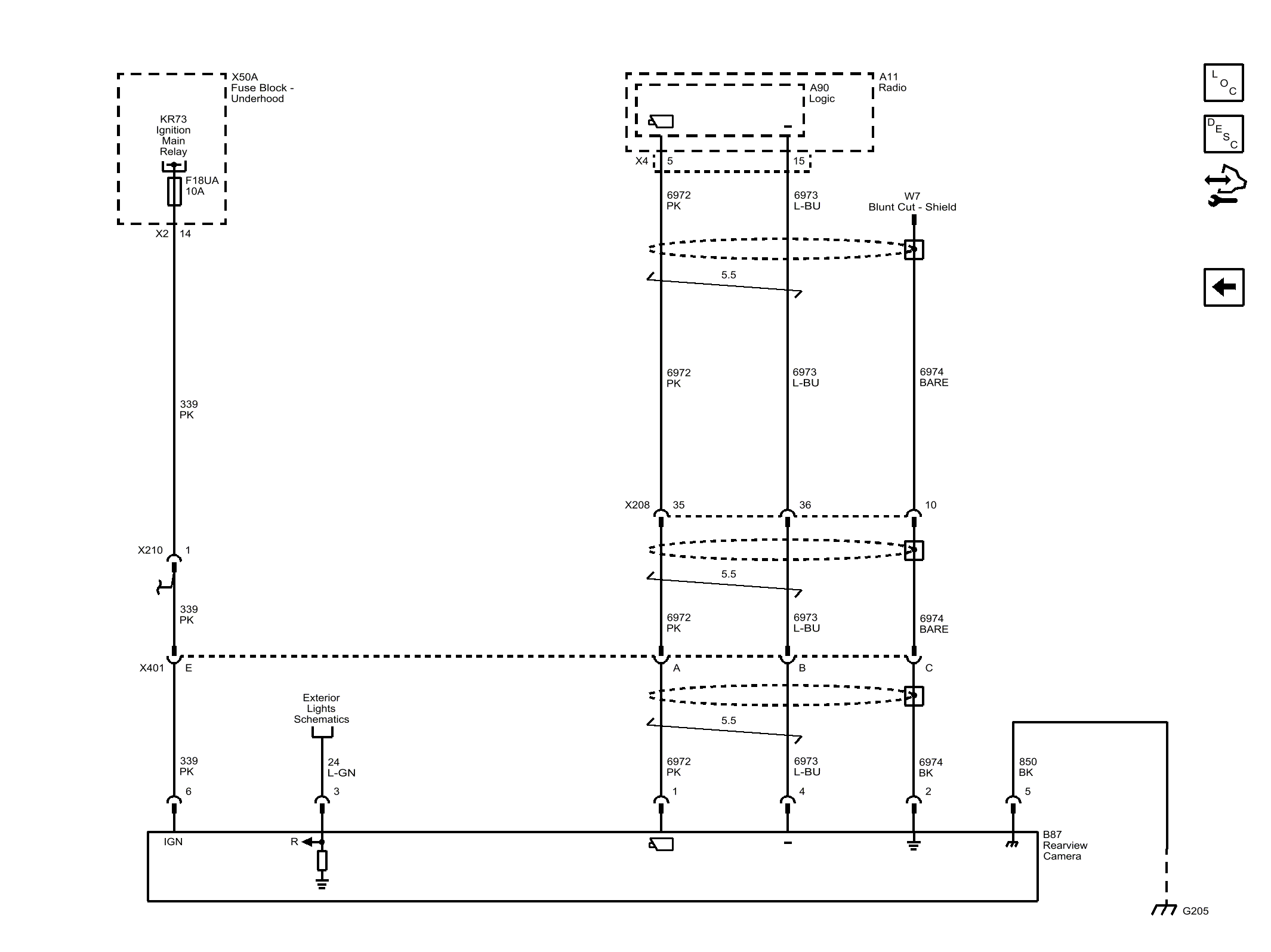

Fig 1: Object Detection Schematics Rear View Camera

GM3708647

Courtesy of GENERAL MOTORS COMPANY
