Moveable Window Wiring Schematics: Driver

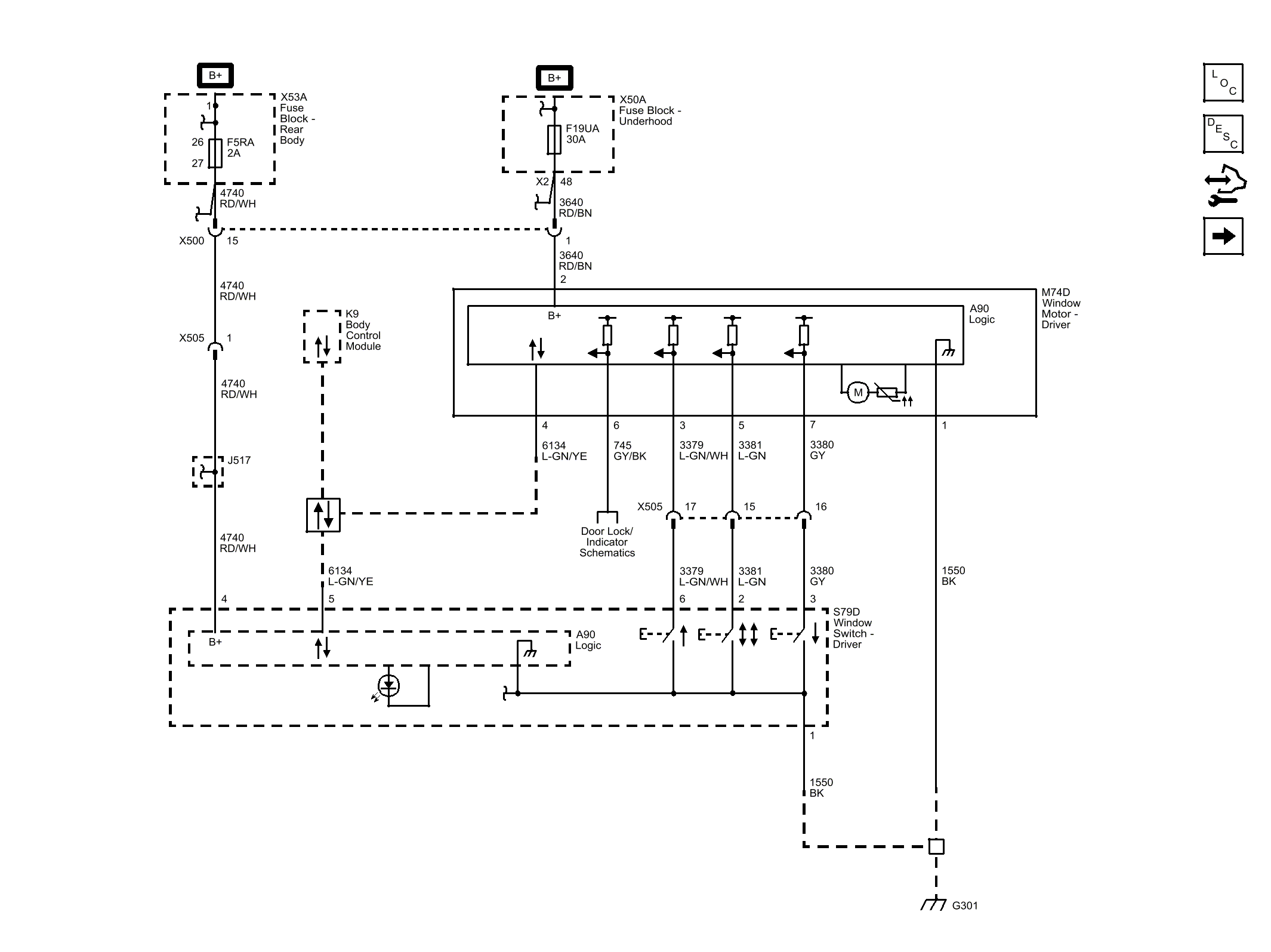

Fig 1: Moveable Window (Driver) Wiring Schematics

GM3339772

Courtesy of GENERAL MOTORS COMPANY
