Front Side Door Window Regulator Motor Replacement
Front Side Door Window Regulator Motor Replacement

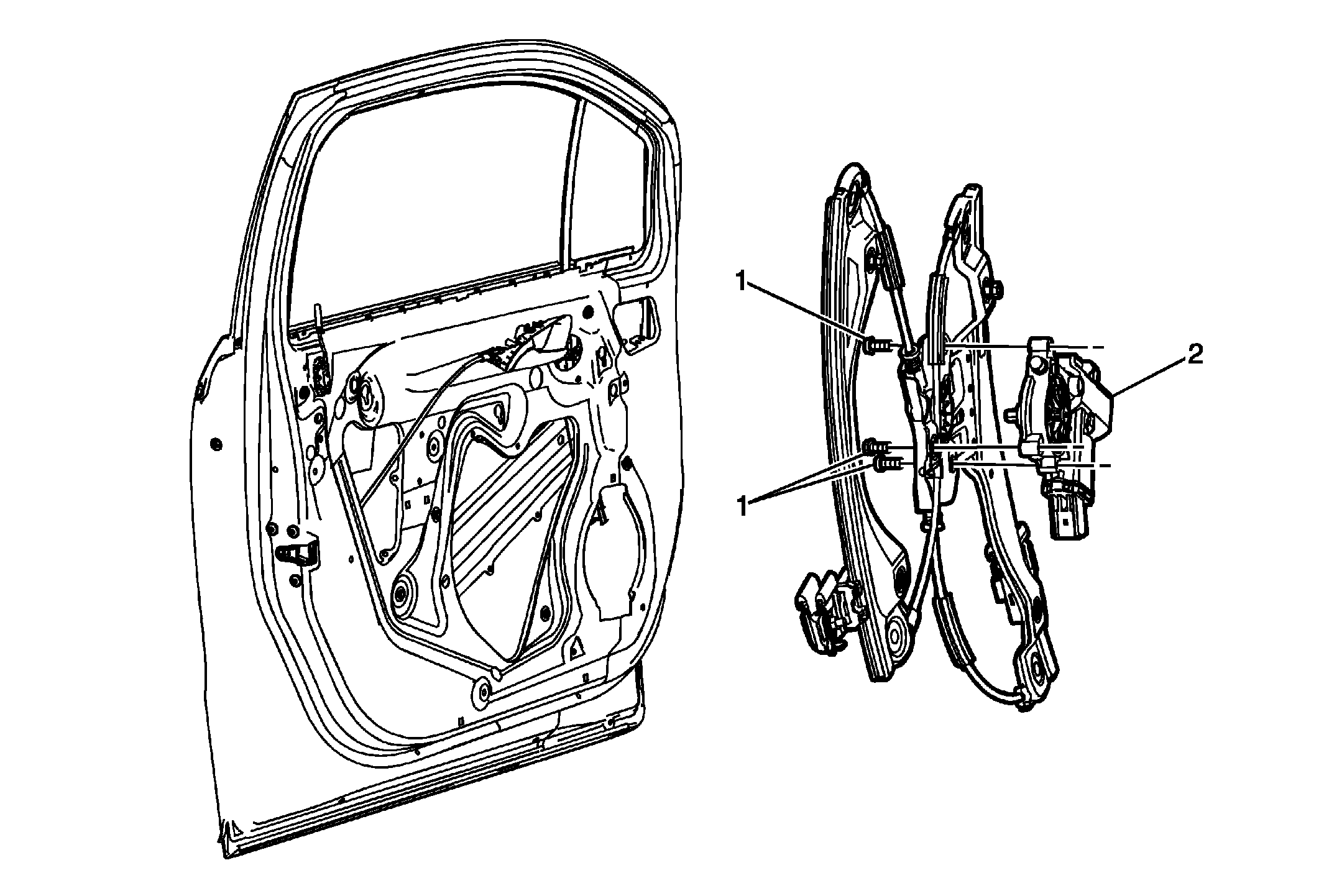

| Callout | Component Name |
|---|---|
|
WARNING:
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement . |
|
| 1 | Front Side Door Window Regulator Motor Screws (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tighten 5 N.m (44 lb in) |
| 2 | Front Side Door Window Regulator Motor TIP: Inspect the window for proper operation before installing the door trim panel. |
