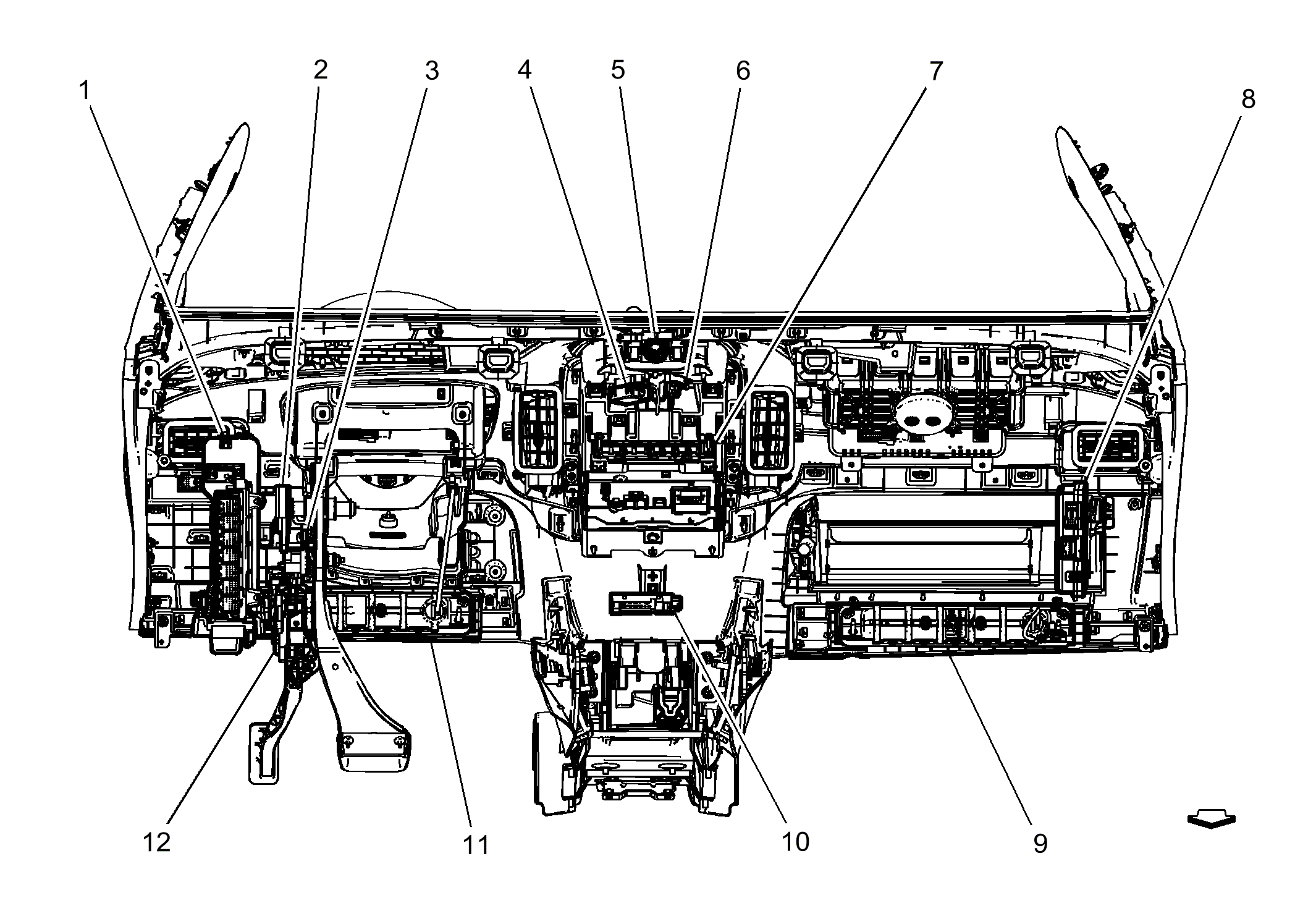

Instrument Panel Components (RHD) (2 Of 2)
Instrument Panel Components (RHD) (2 Of 2)
| Items |
|---|
| 1: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 2: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 3: B201 Brake Control Brake Pedal Position Sensor B201 Brake Control Brake Pedal Position Sensor |
| 4: K89 Immobilizer Control Module K89 Immobilizer Control Module |
| 5: E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle |
| 6: B101 Immobilizer Antenna |
| 7: K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3 |
| 8: K46 Radio Antenna Module K46 Radio Antenna Module X1 (US3) |
| 9: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger |
| 10: T10 Keyless Entry Antenna T10 Keyless Entry Antenna |
| 11: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver |
| 12: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
