Front Side Door Window Inner Sealing Strip Replacement (Encore)

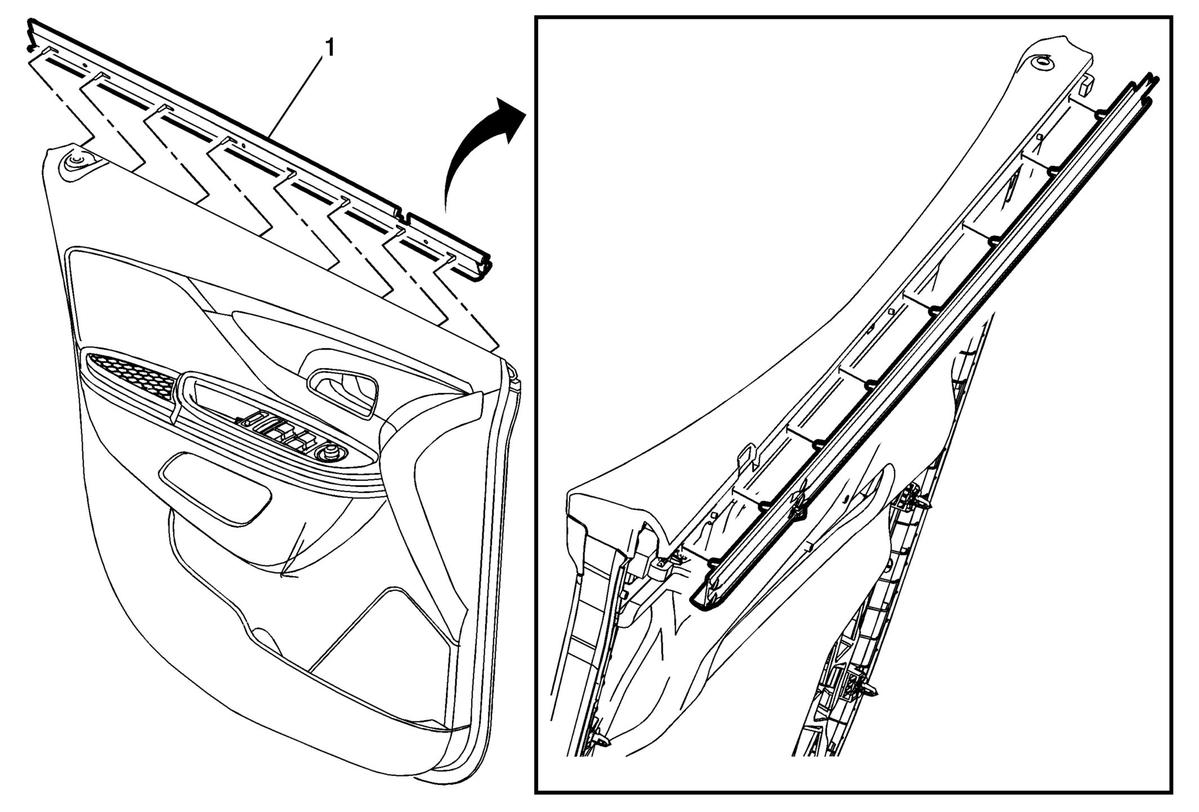

Fig 1: Front Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Inner Sealing Strip Replacement (Encore)

Callout	Component Name
Preliminary Procedure  Remove the front side door trim. Refer to Front Side Door Trim Replacement (Encore) .
1	Front Side Door Window Inner Sealing Strip Assembly Procedure  Pull outward to disengage sealing strip from door trim panel.
