Installation Procedure
WARNING: This page is about a different car, the 2013 Chevrolet Trax and 2013 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

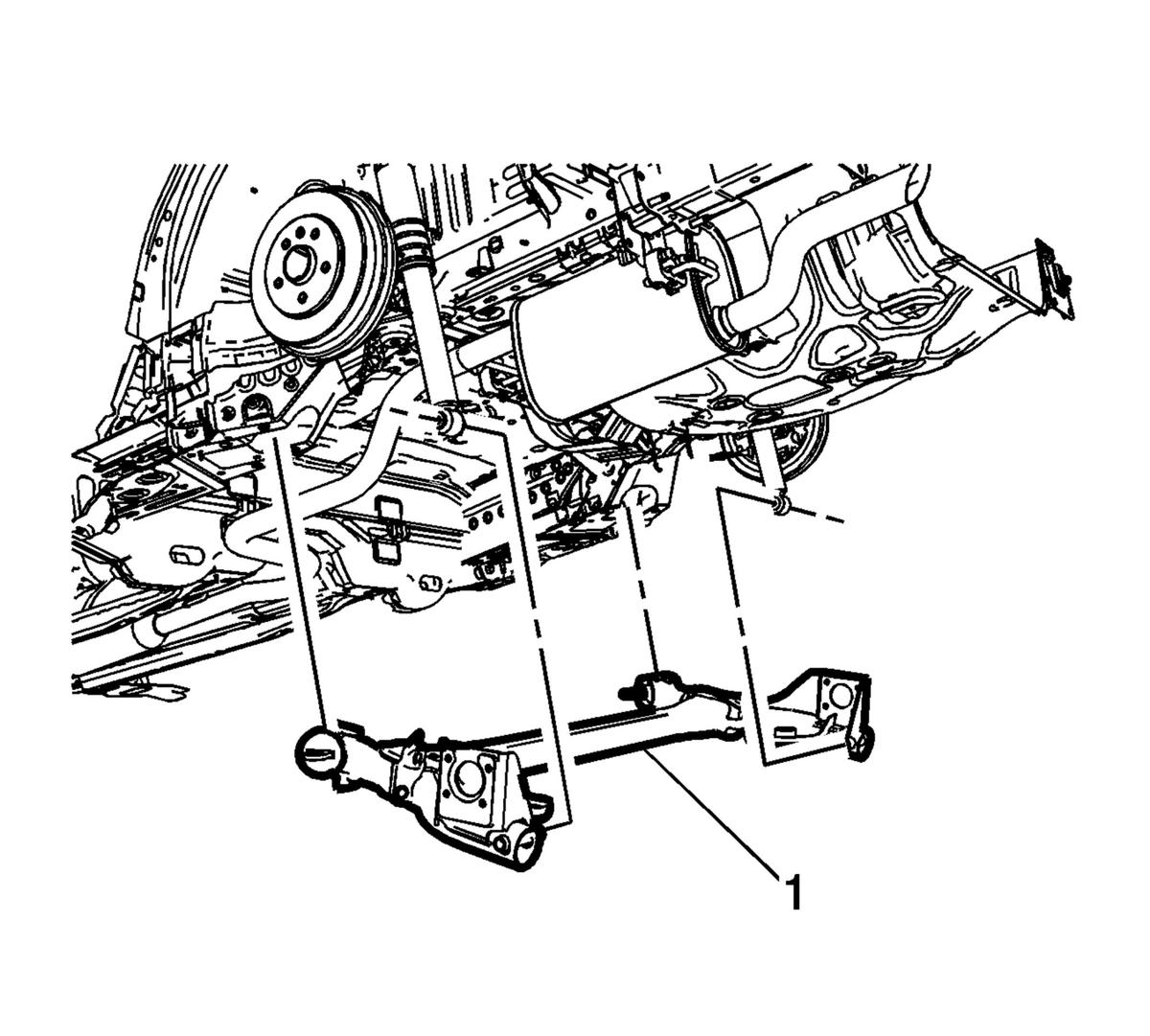

- Using a hydraulic jack stand with the DT 50187 supporter and the CH 51035 adapter, position the rear axle assembly (1) in the vehicle.

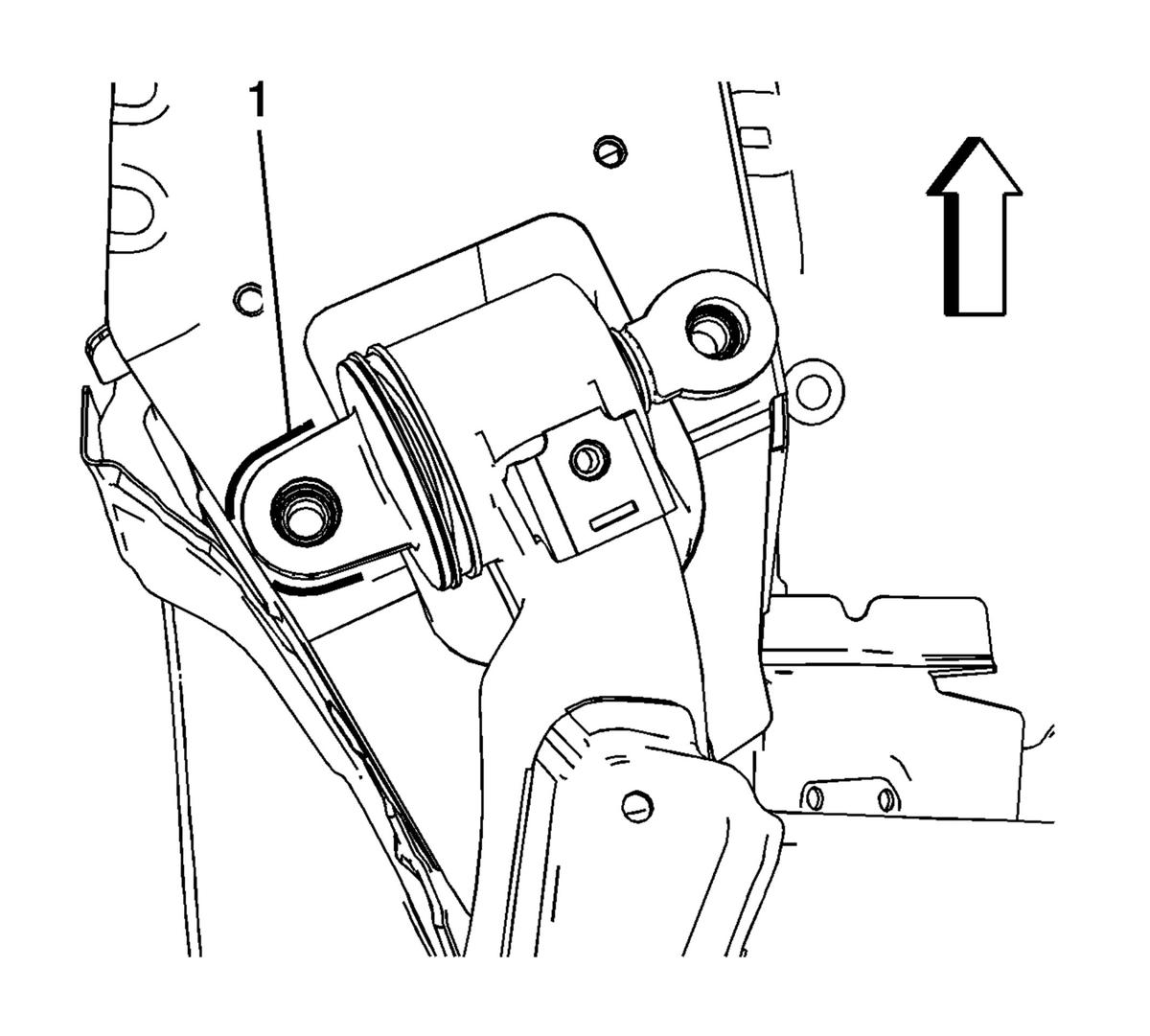

- Align the mounting points of the rear axle to the painted outline (1) on the chassis.

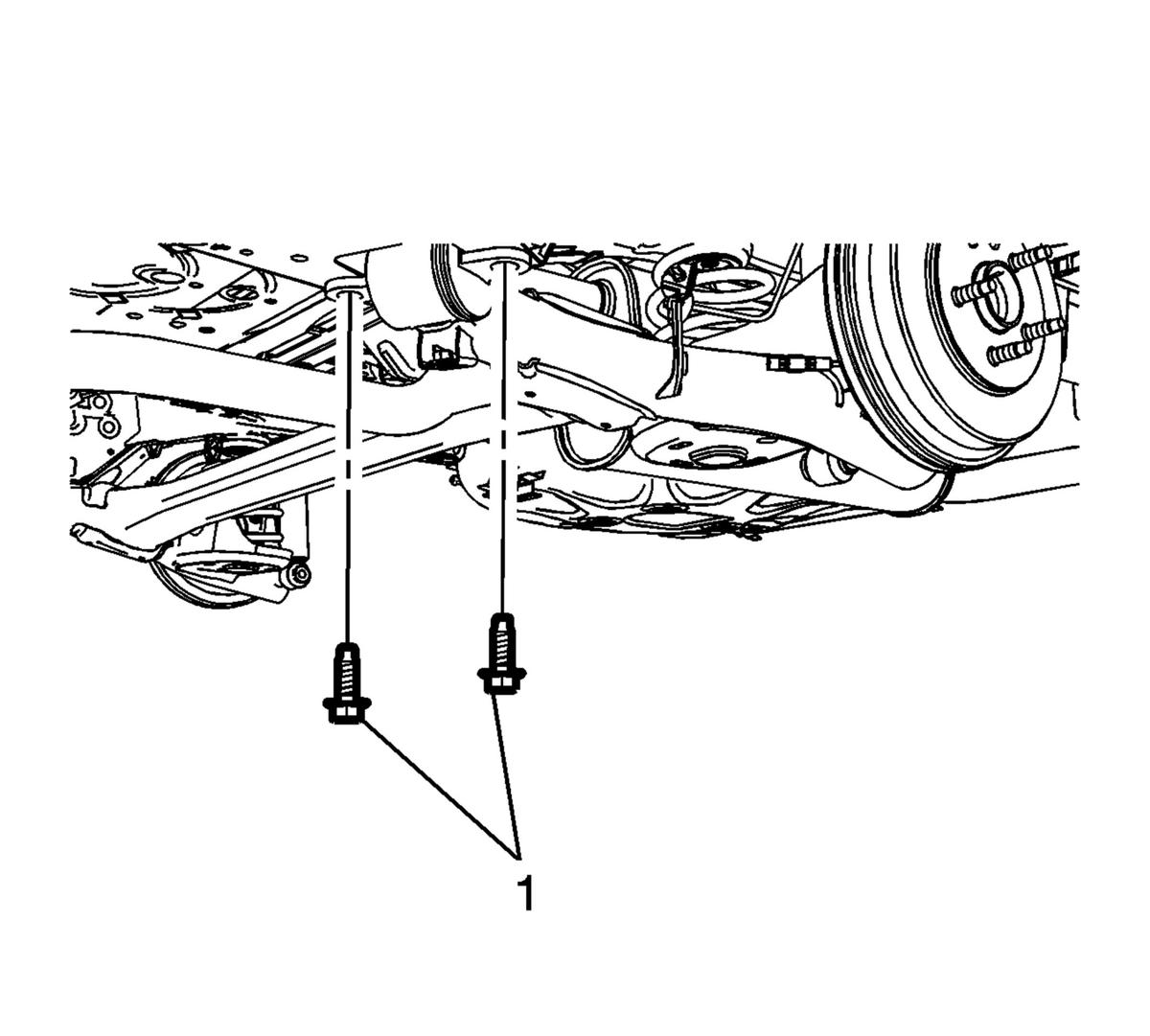

- Install the rear axle mounting bolts (1).
- Using the EN-45059
meter, tighten the rear axle mounting bolts (1) to:
- First Pass 160 N.m (118 lb ft)
- Final Pass plus 38 degrees
- Install the rear spring. Refer to Rear Spring Replacement .
- Install the rear wheel bearing/hub mounting bolts to the rear axle. Refer to Rear Wheel Bearing and Hub Replacement (With Disc Brakes) or Rear Wheel Bearing and Hub Replacement (With Drum Brakes) .
- Install the rear park brake cables.
- Install the rear brake lines on the rear axle.
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Remove the supports and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
