Center Reading Lamp Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

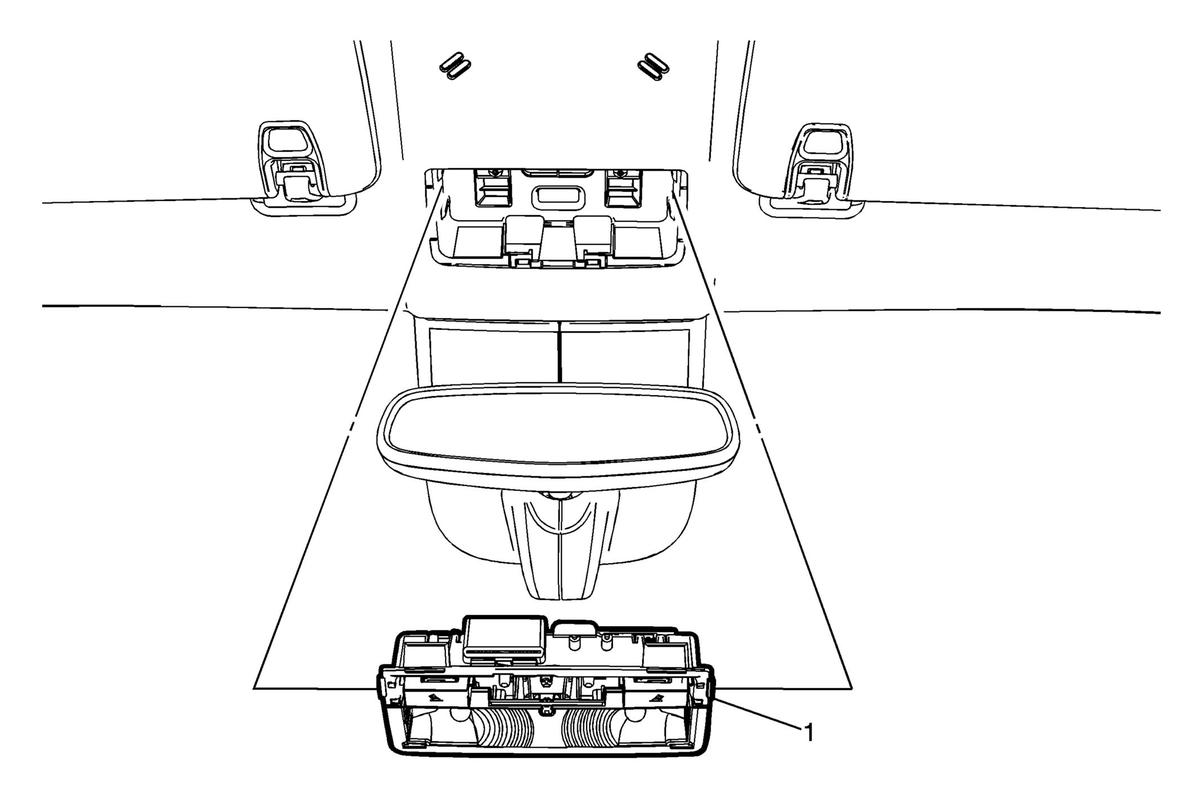

Fig 1: Center Reading Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the center reading and courtesy lamp lens. Refer to Center Reading and Courtesy Lamp Lens Replacement .
1	Center Reading Lamp Procedures Using a suitable flat bladed tool, release the metal retaining clips through the two access holes and pull downward to release the retainer clips securing the assembly to the roof console. Disconnect the electrical connections.

Callout

Component Name

Preliminary Procedure
Remove the center reading and courtesy lamp lens. Refer to Center Reading and Courtesy Lamp Lens Replacement .

Center Reading Lamp

Procedures

Using a suitable flat bladed tool, release the metal retaining clips through the two access holes and pull downward to release the retainer clips securing the assembly to the roof console.
Disconnect the electrical connections.
