Installation Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the master cylinder reservoir, if removed. Refer to Master Cylinder Reservoir Replacement .

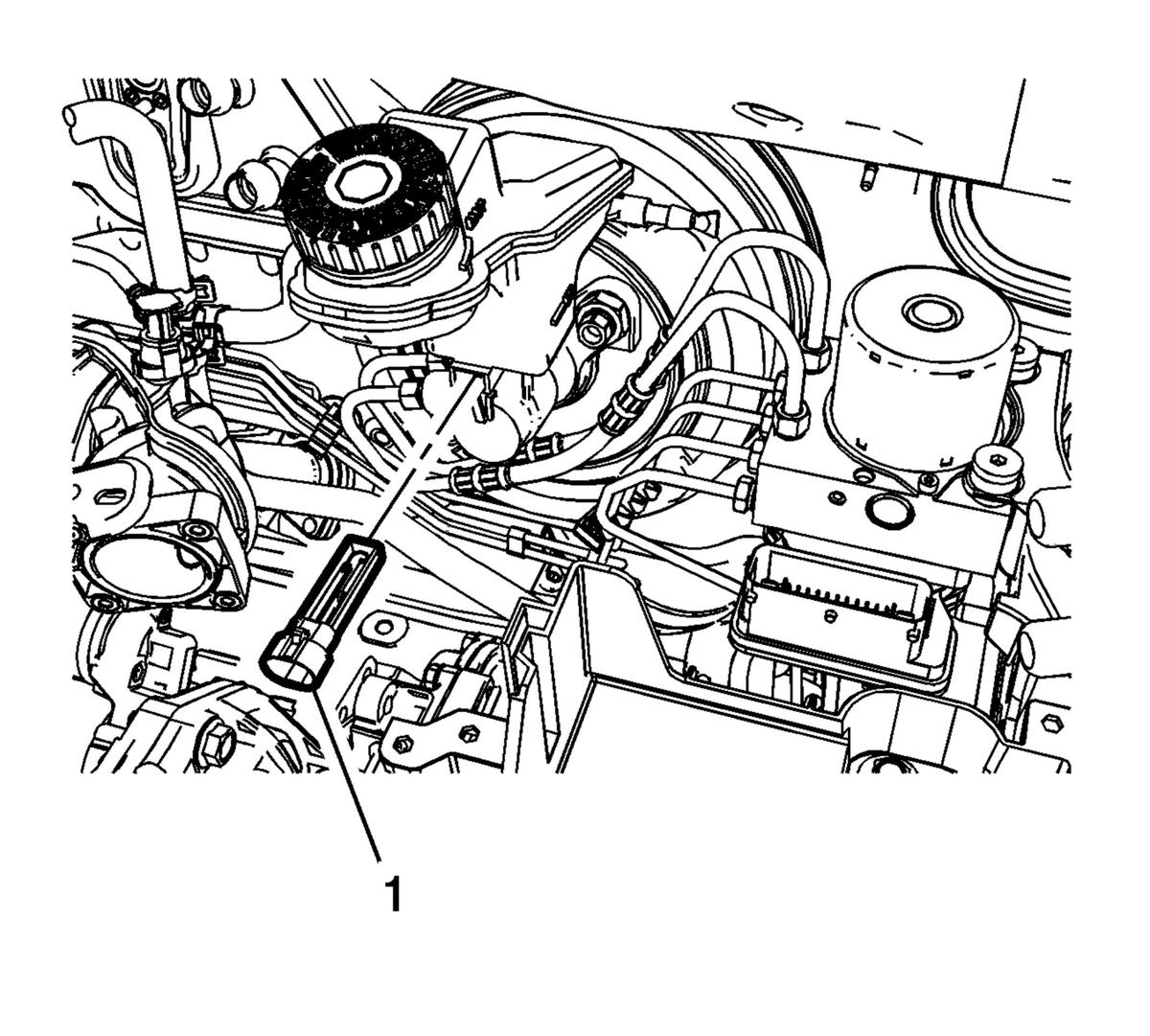

    2. Fig 1: Brake Fluid Level Indicator Switch
    GM2910018Courtesy of GENERAL MOTORS COMPANY
  2. Install the brake fluid level indicator switch (1) by pressing the switch firmly into the brake master cylinder reservoir.
  3. Connect the brake fluid level indicator switch electrical connector.
