Installation Procedure

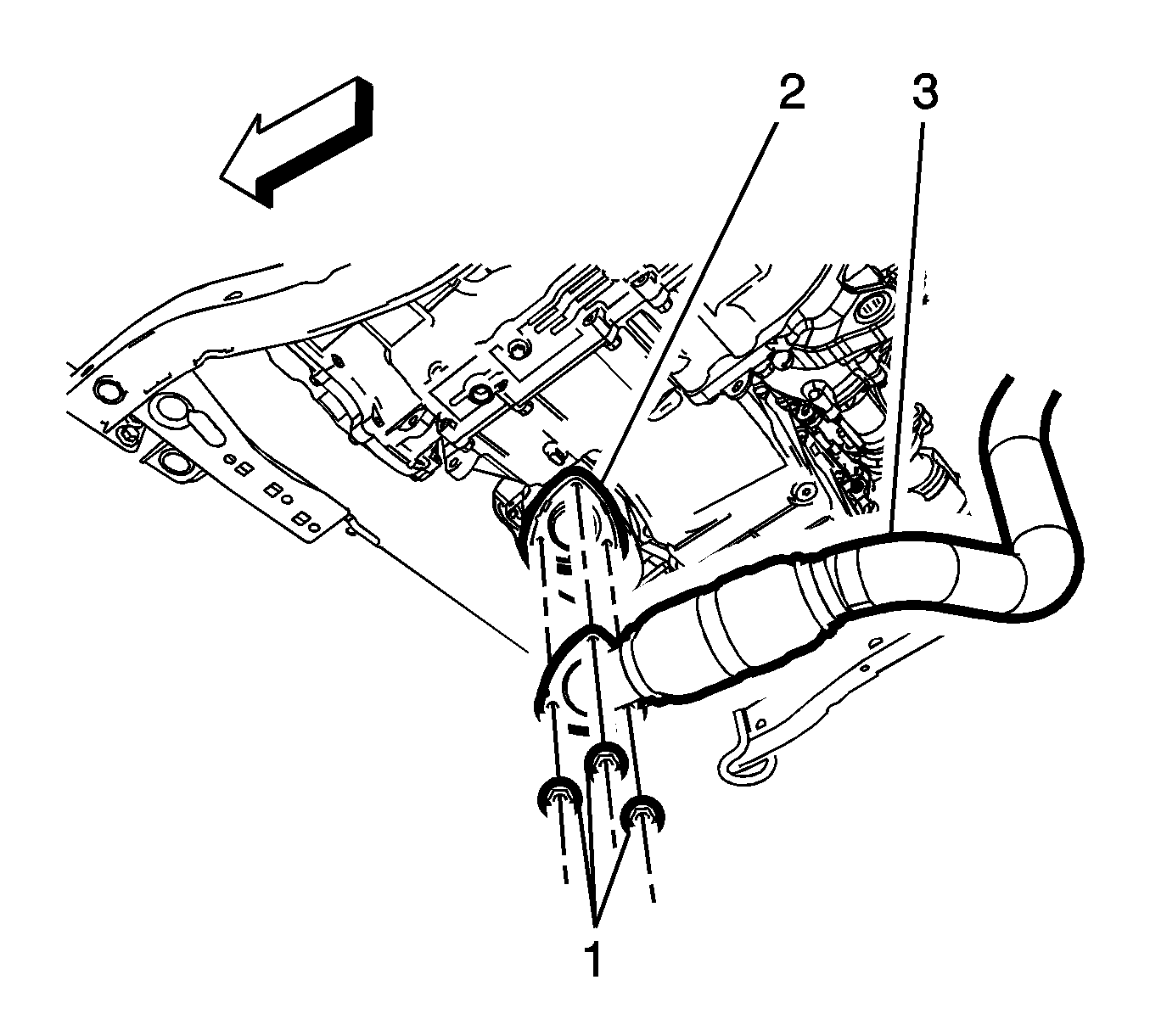

    Fig 1: Pipe Gasket And Fasteners
    GM2780474Courtesy of GENERAL MOTORS COMPANY
  1. Install the exhaust front pipe (3) to the catalytic converter with a NEW gasket (2) and hand tighten the fasteners (1).

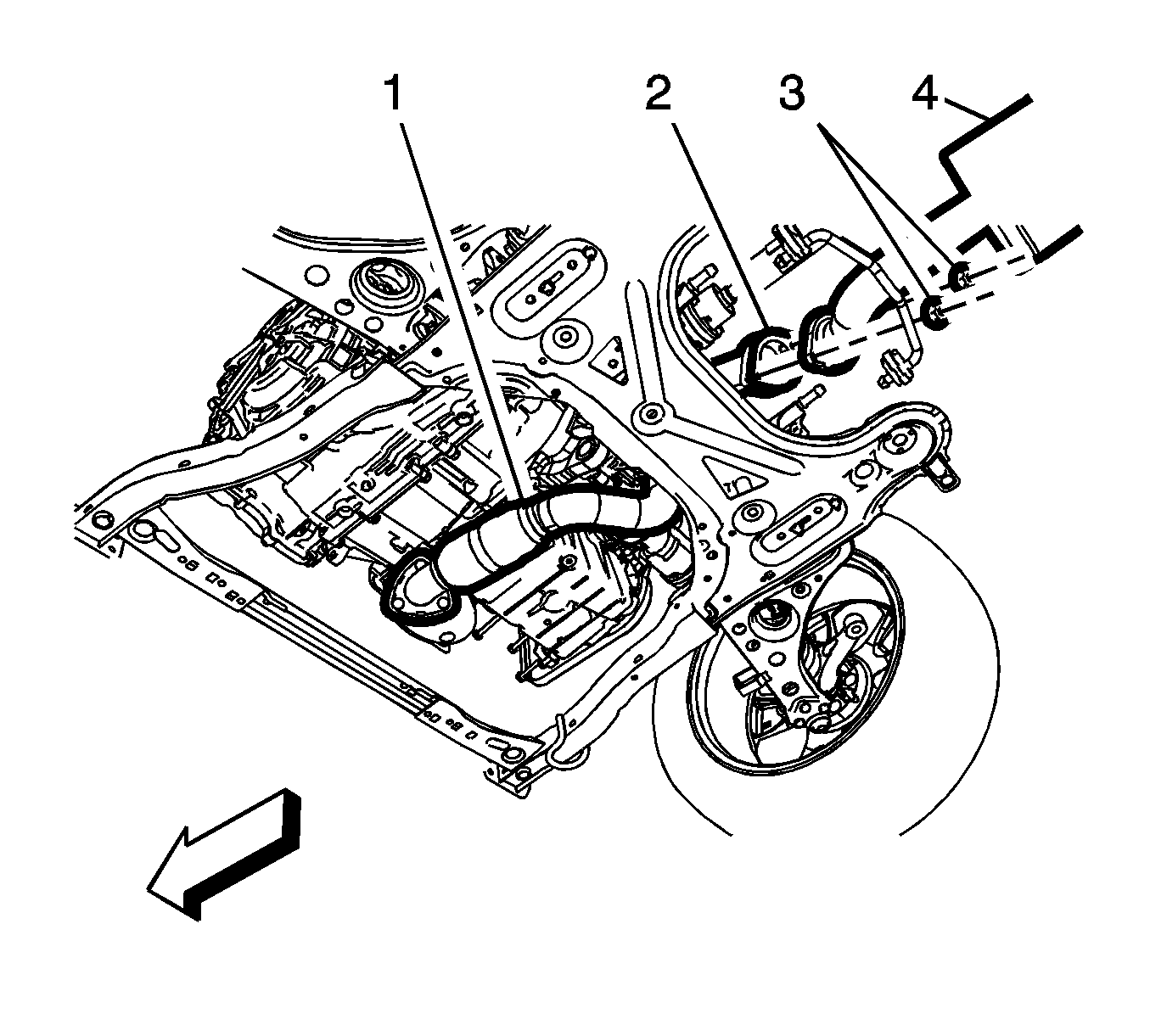

    2. Fig 2: Muffler And Exhaust Pipe
    GM2780600Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Do not twist or damage the flex coupler.

  2. Install the exhaust front pipe (1) to the exhaust muffler (4) with a NEW gasket (2) and tighten the fasteners (3) to 17 (13 lb ft).
    3. Fig 3: Pipe Gasket And Fasteners
    GM2780474Courtesy of GENERAL MOTORS COMPANY
  3. Tighten the exhaust front pipe fasteners (1) to 22 (16 lb ft).
  4. Connect the heated oxygen sensor - position 2 to the engine wiring harness.
  5. Start the engine and check for exhaust leaks.
