Catalytic Converter Front Heat Shield Replacement

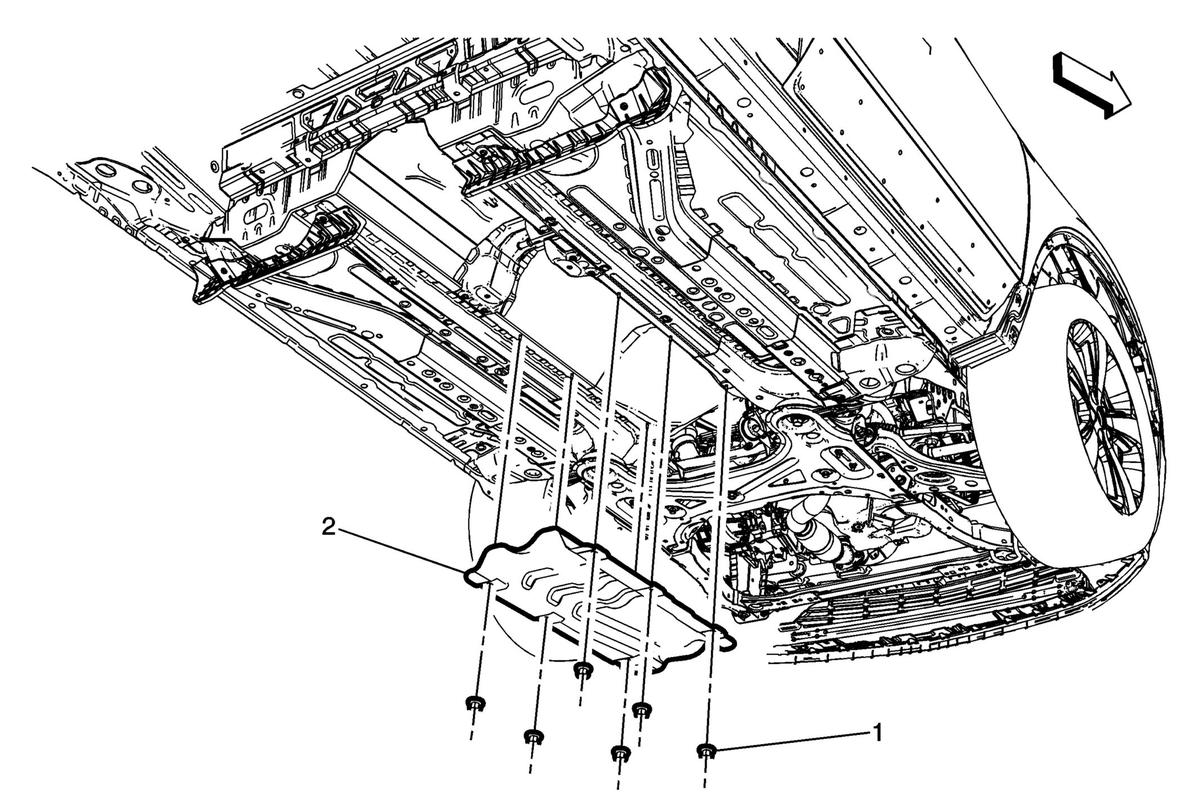

Fig 1: Catalytic Converter Front Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (LUV) , Exhaust Muffler Replacement (2HO) .
1	Catalytic Converter Front Heat Shield Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 3 (26 lb in)
2	Catalytic Converter Front Heat Shield

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Catalytic Converter Front Heat Shield Fastener (Qty: 6)

CAUTION:

Tighten
3 (26 lb in)

Catalytic Converter Front Heat Shield
