Rear Audio Controls, Lighting, Data Communication and Infrared Module

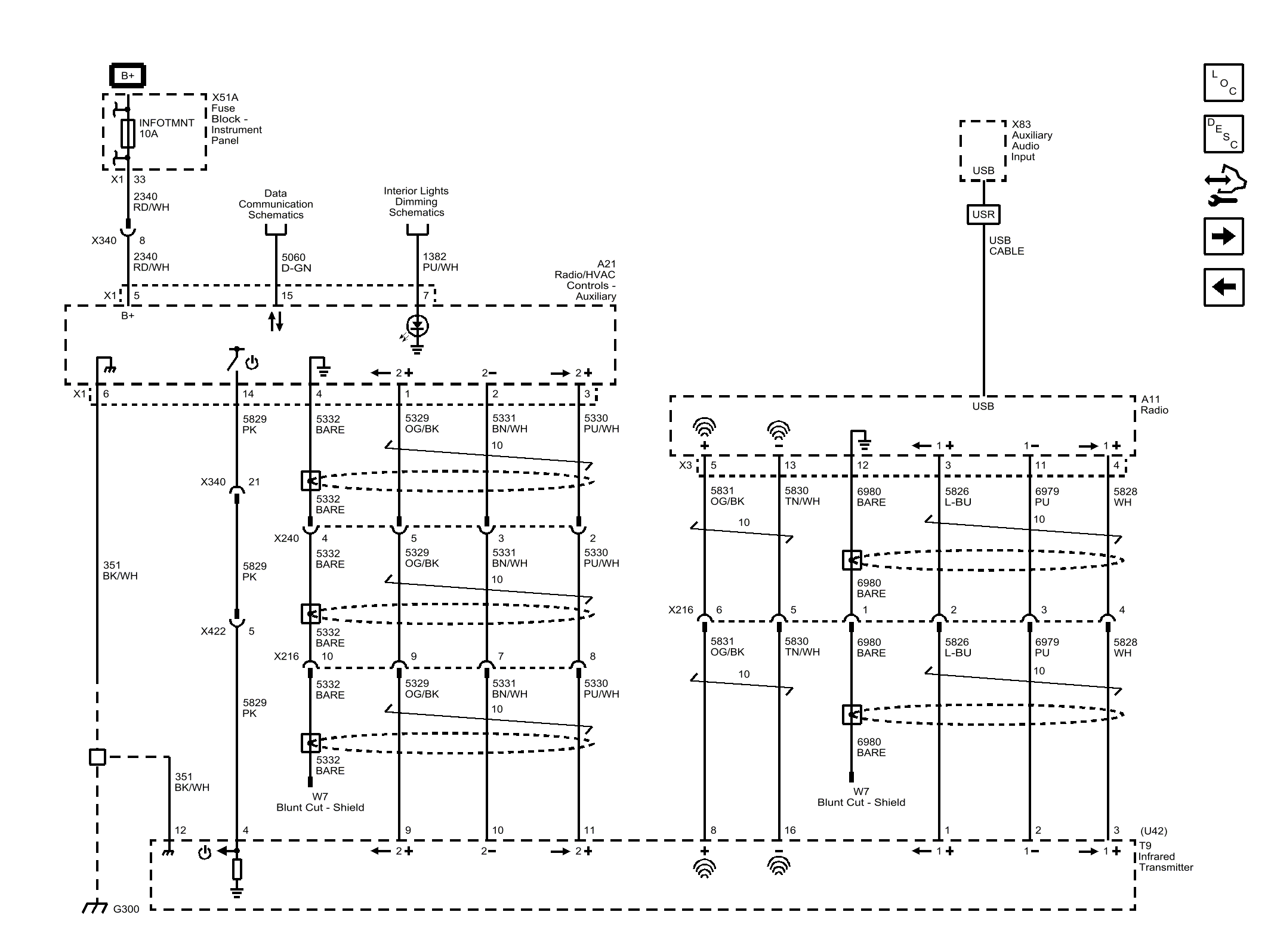

Fig 1: Rear Audio Controls, Lighting, Data Communication and Infrared Module Wiring Schematics

GM3326719

Courtesy of GENERAL MOTORS COMPANY
