Power Steering Wiring Schematics: NV7

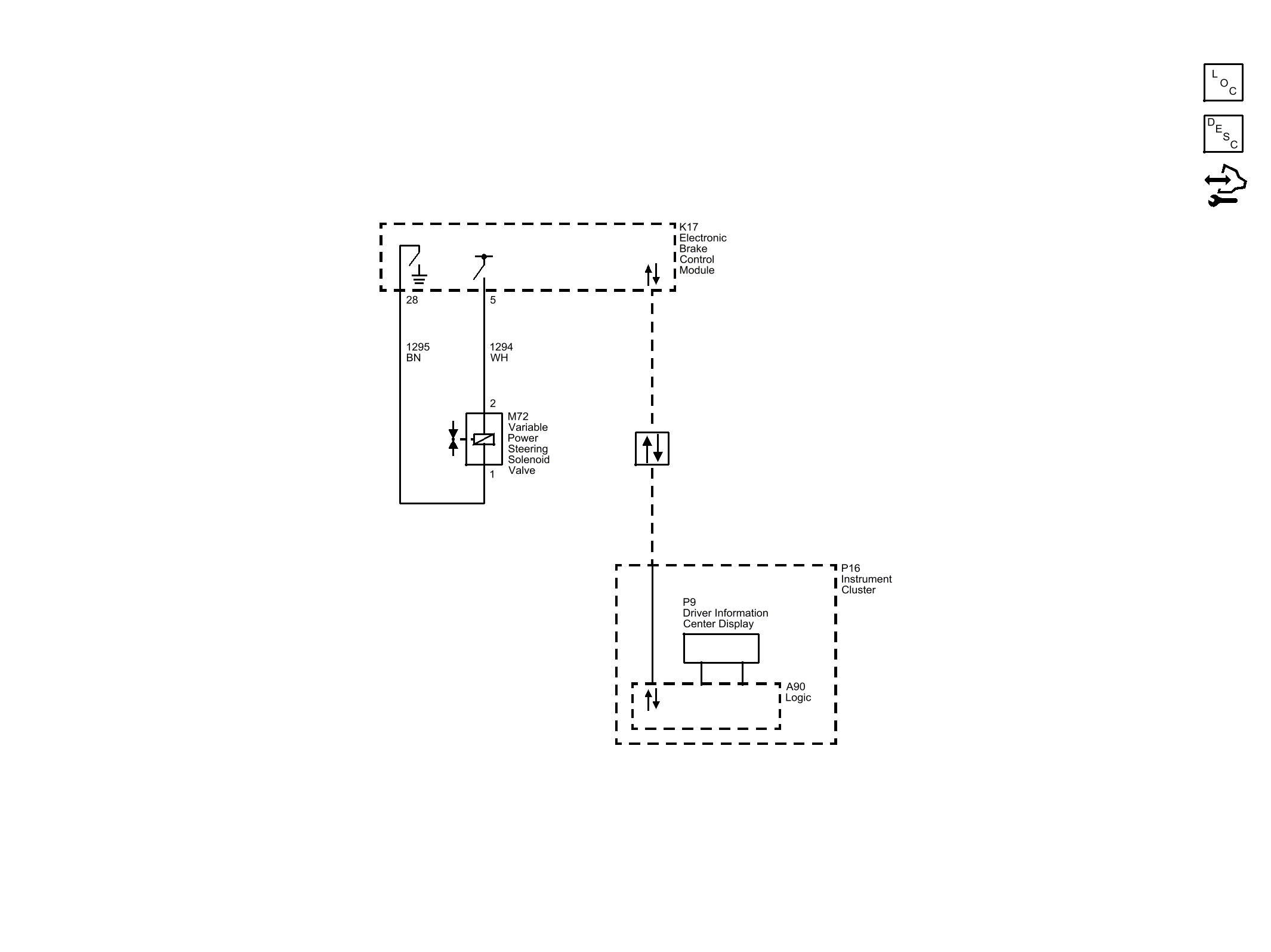

Fig 1: NV7 Wiring Schematics

GM3329493

Courtesy of GENERAL MOTORS COMPANY
