Installation Procedure

  1. Install the exhaust manifold heat shield.

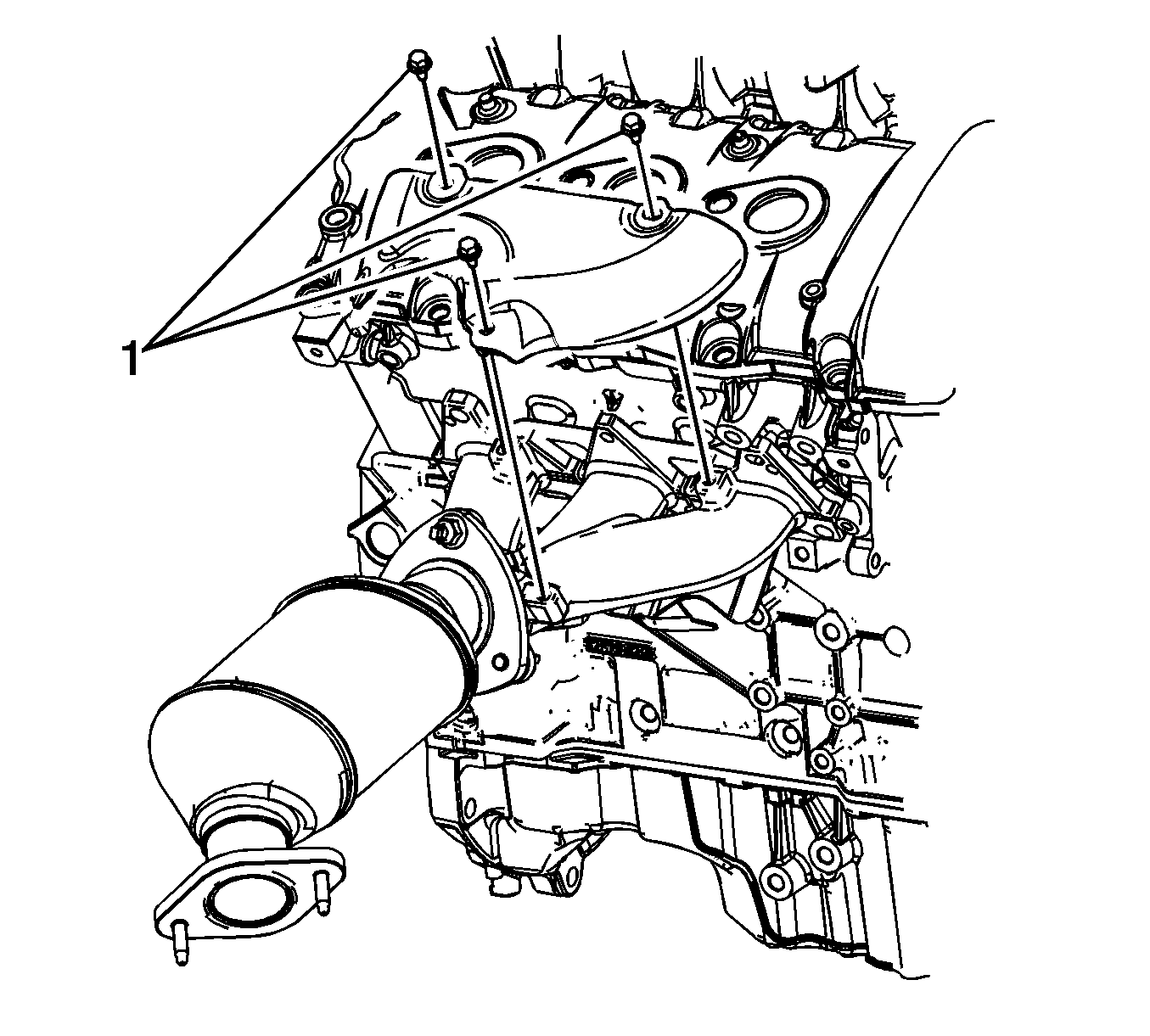

    Fig 1: Identifying Exhaust Manifold Heat Shield Bolts - Right Side
    GM1861575Courtesy of GENERAL MOTORS COMPANY
  2. Install the exhaust manifold heat shield bolts (1) and tighten to 10 N.m (89 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the exhaust flexible pipe. Refer to Exhaust Flexible Pipe Replacement .
  4. Install the HO2S. Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 .
