Starting System and Charging System Wiring Schematics: Starting

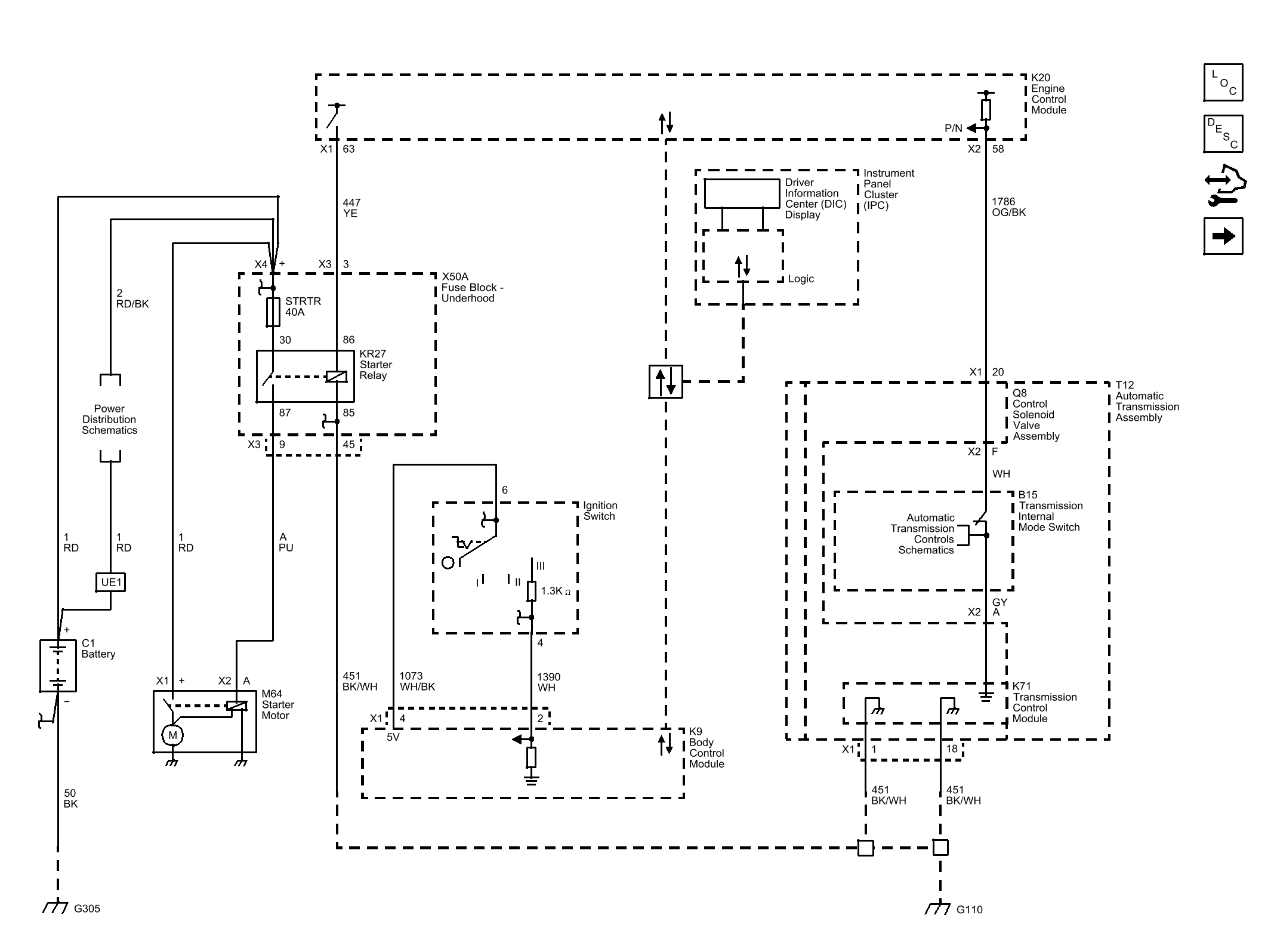

Fig 1: Starting Wiring Schematics

GM3329315

Courtesy of GENERAL MOTORS COMPANY
