Rocker Panel Extension Molding Retainer Replacement
Rocker Panel Extension Molding Retainer Replacement

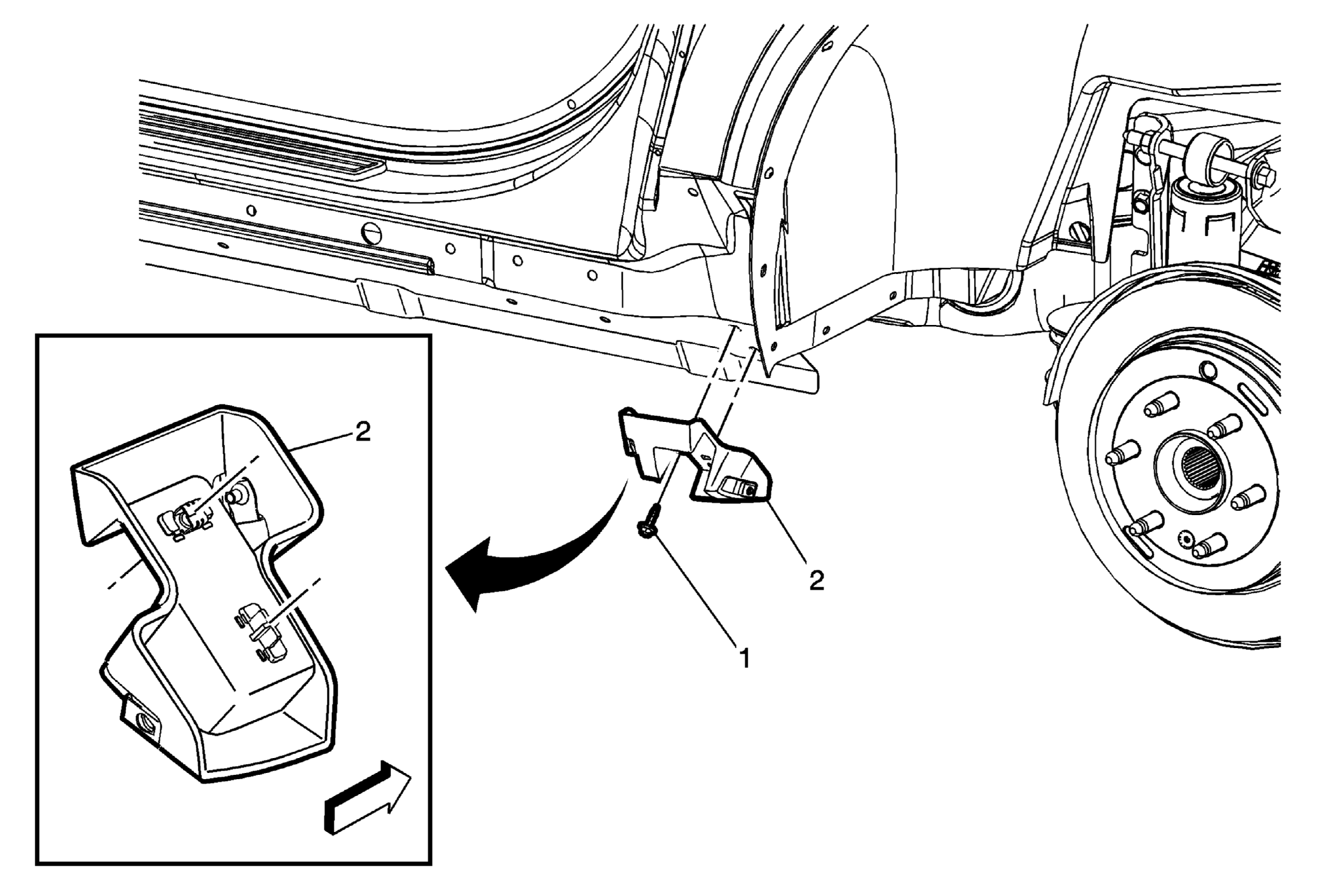

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rocker panel rear molding. Refer to Rocker Panel Rear Molding Replacement (Enclave) , Rocker Panel Rear Molding Replacement (Traverse) and Rocker Panel Rear Molding Replacement (Acadia) . |
|
| 1 | Rocker Panel Extension Molding Retainer Bolt
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Rocker Panel Extension Molding Retainer Procedure Pull downward to release locating tab. |
