Front Side Door Locking Rod Knob Replacement
Courtesy of GENERAL MOTORS COMPANY Front Side Door Locking Rod Knob Replacement

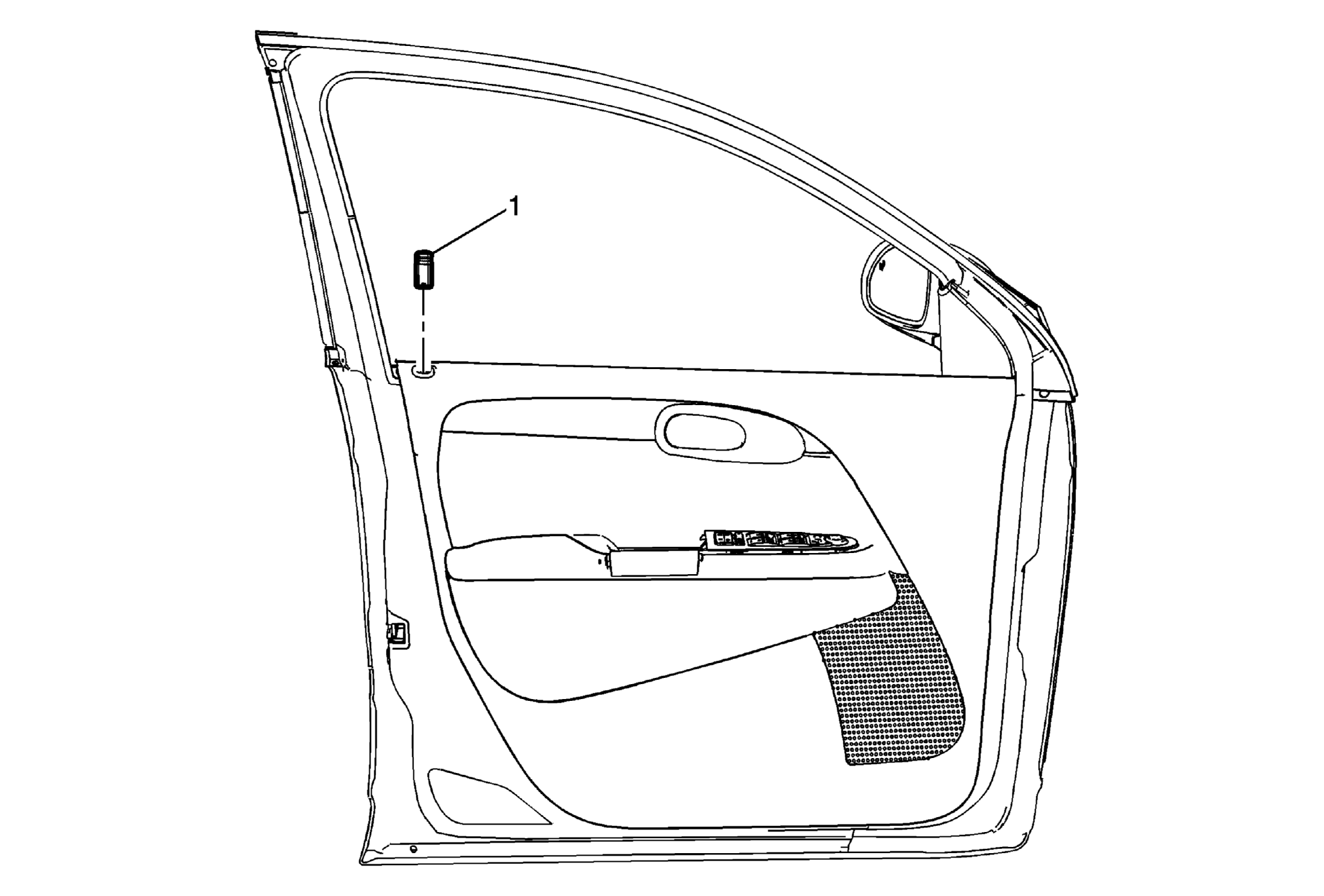

| Callout |
Component Name |
| 1 |
Front Side Door Locking Rod Knob Procedure
- Ensure the locking rod is in the unlocked position.
- Use a flat-bladed tool to disengage the detent tab and then remove the knob by pulling upward.
- When re-installing, push the knob down until the detent tab touches the locking rod opening cover.
- Push the detent tab into the lock knob to locking rod.
|
