Rearview Driver Information Camera Replacement (Acadia, Enclave)

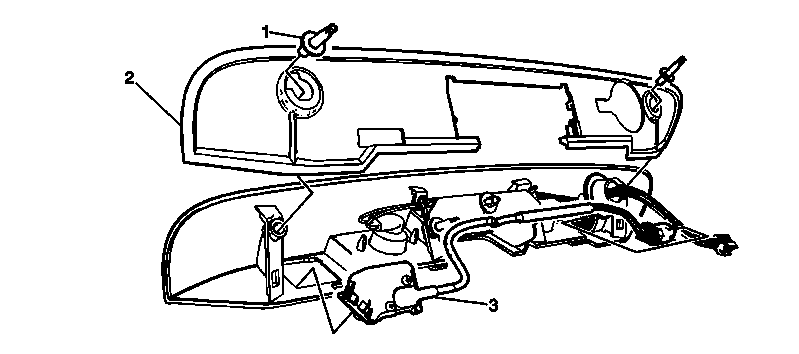

Fig 1: Rearview Driver Information Camera (Acadia, Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate applique. Refer to Liftgate Applique Replacement (Acadia) .
1	Double Ended Stud with Collar (Qty: 2) TIP: Remove in order to remove the isolator from the applique.
2	Liftgate Applique Isolator TIP: Carefully release the isolator tab from the liftgate applique.
3	Rearview Camera Procedure Disengage the electrical harness from above the rear latch clips. Disconnect the camera electrical harness connector from the rear license plate lamp harness electrical connector. Ensure the electrical harness is properly positioned prior to installation of the liftgate applique isolator.
