Audio Amplifier Center and Subwoofer Audio Inputs (UQS)

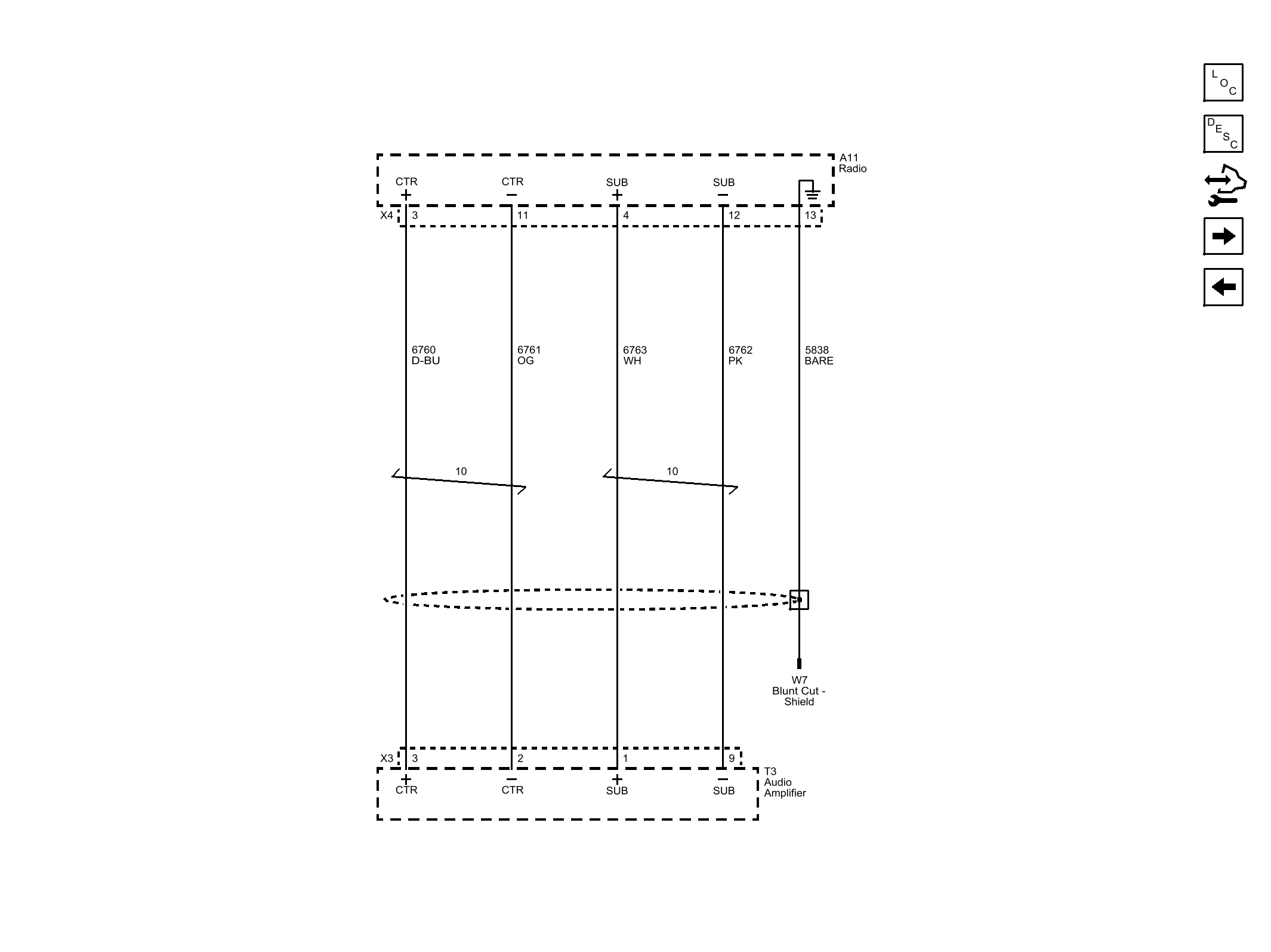

Fig 1: Audio Amplifier Center and Subwoofer Audio Inputs (UQS) Wiring Schematics

GM3326699

Courtesy of GENERAL MOTORS COMPANY
