Installation Procedure

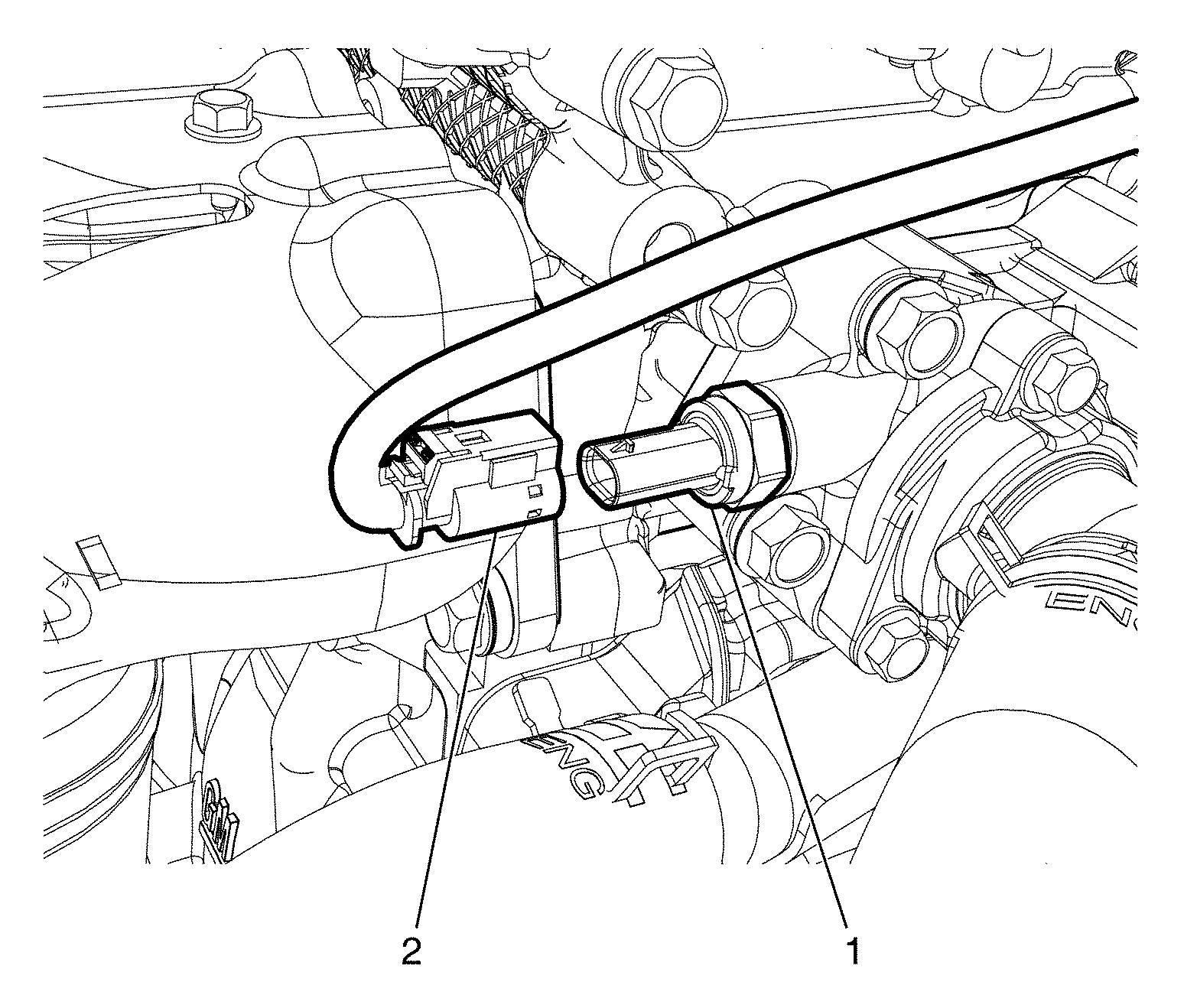

    Fig 1: Engine Coolant Temperature Sensor Connector
    GM3333205Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

  1. Install the engine coolant temperature sensor (1) and tighten to 33 (24 lb ft).
  2. Connect the engine coolant temperature sensor connector (2).
  3. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  5. Refill the engine coolant. Refer to Cooling System Draining and Filling .
