Manual Transmission Component Views
>>
Gear Shift Control
Gear Shift Control

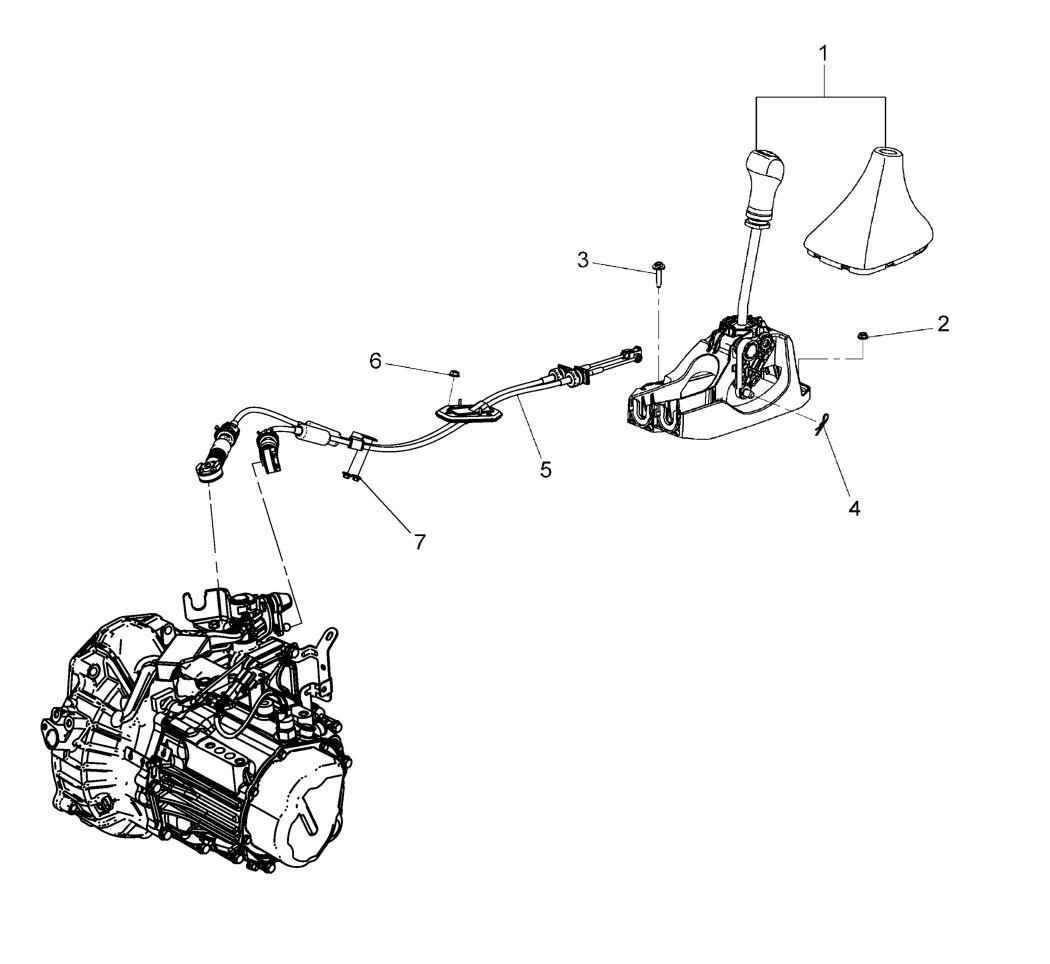

Fig 1: Gear Shift Control Components
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Transmission Control
2
Nut
3
Bolt
4
Pin
5
Shift Lever and Selector Lever Cable
6
Nut
7
Nut
