Valve Body

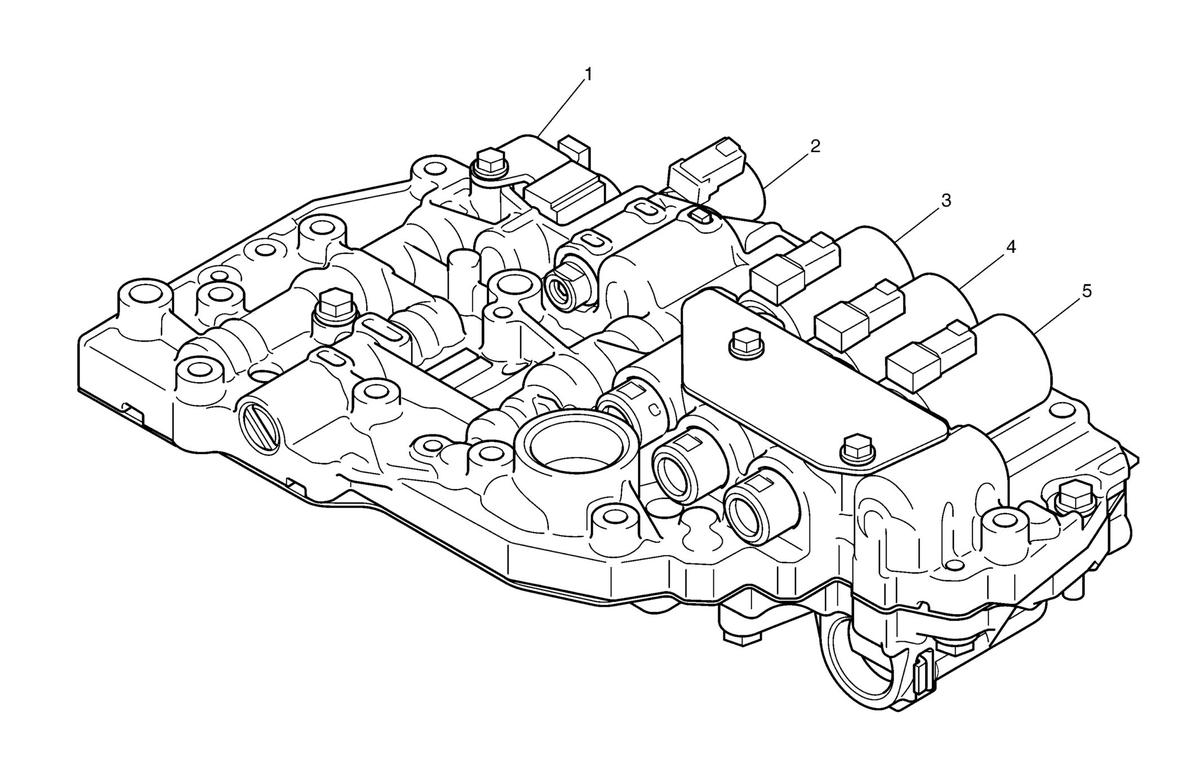

Fig 1: Pressure Control Solenoid Valve
GM2753284Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Shift Solenoid Valve (S1)
2 Lock-Up Control Solenoid Valve (SLU)
3 Pressure Control Solenoid Valve 3 (SLB1)
4 Pressure Control Solenoid Valve 2 (SLC2)
5 Pressure Control Solenoid Valve 1 (SLC1)
