Shoulder Belt Replacement - Rear

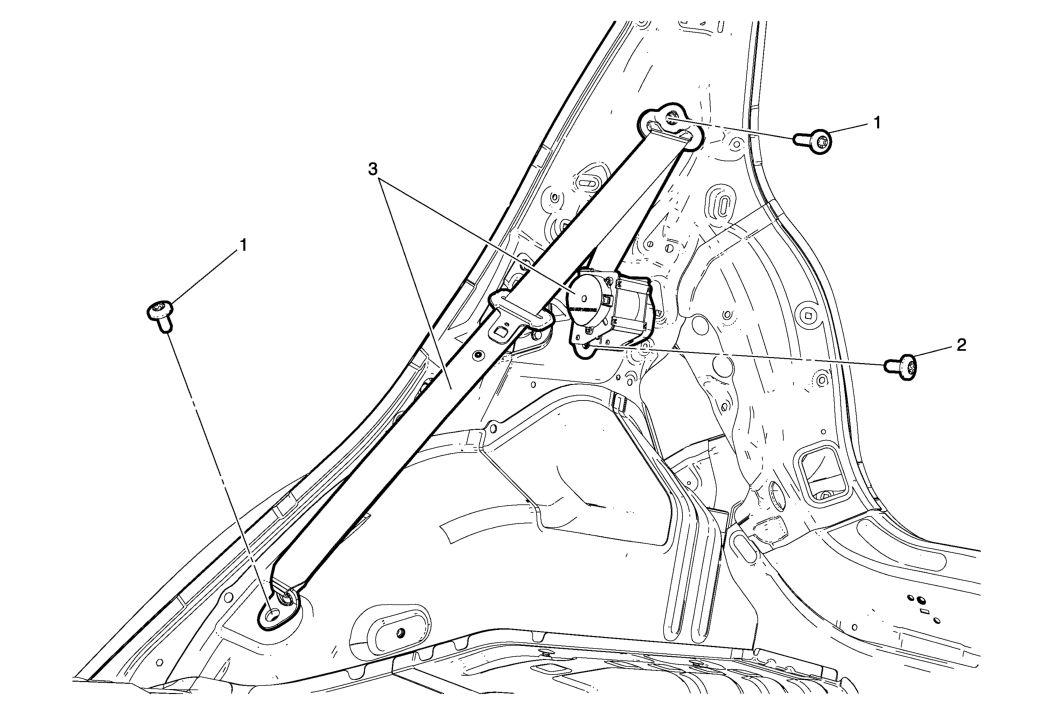

Fig 1: Rear Seat Belt Assembly
GM2309266Courtesy of GENERAL MOTORS COMPANY
Shoulder Belt Replacement - Rear

Callout Component Name

Preliminary Procedures

  1. Remove the rear wheelhouse trim finish. Refer to Rear Wheelhouse Trim Finish Panel Replacement .
  2. Remove the quarter window garnish molding. Refer to Quarter Window Garnish Molding Replacement .
1 Rear Seat Belt Anchor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
40 N.m (30 lb ft)
2 Rear Seat Belt Retractor Bolt
Tighten
40 N.m (30 lb ft)
3 Rear Seat Belt Assembly
