Front Seat Belt Buckle Replacement

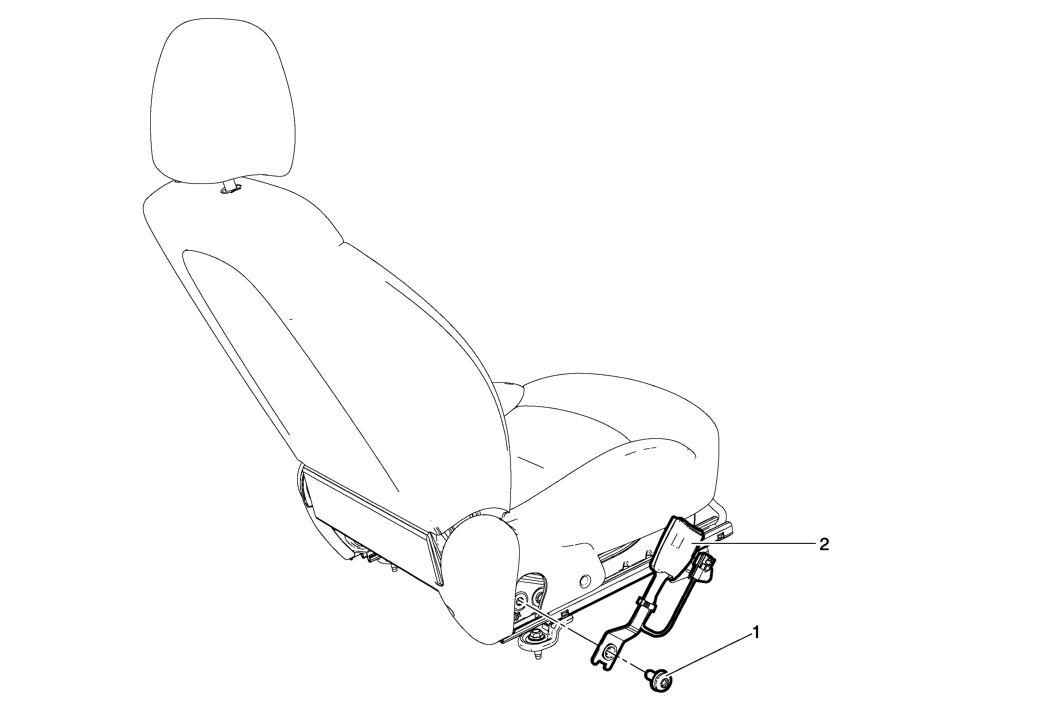

Fig 1: Front Seat Belt Buckle
GM2309249Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Buckle Replacement

Callout Component Name
Preliminary Procedure
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Front Seat Belt Buckle Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
40 N.m (30 lb ft)
2 Front Seat Belt Buckle Assembly
