Speakers Wiring Schematics

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

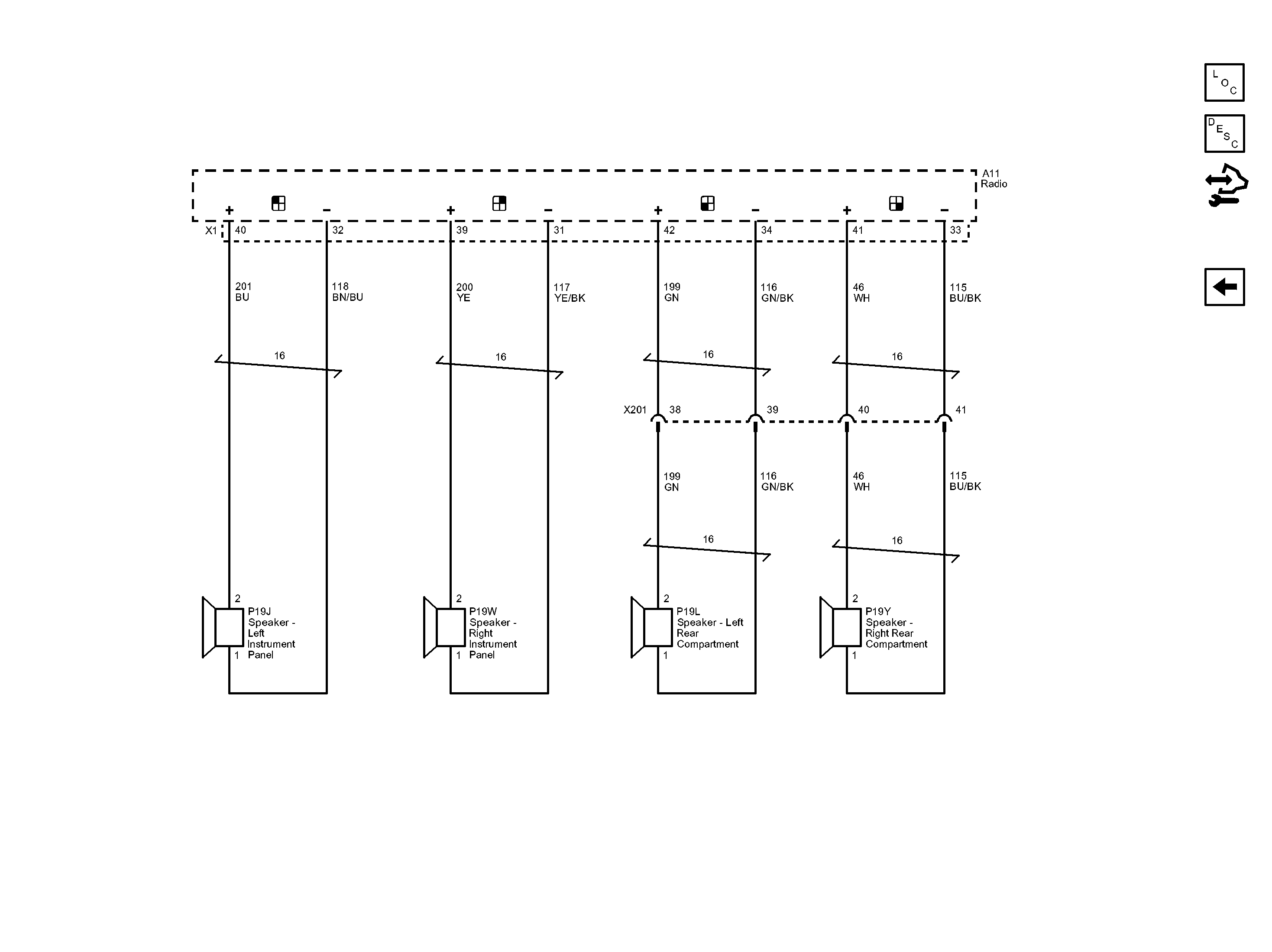

Fig 1: Speakers Wiring Schematics
GM2742908Courtesy of GENERAL MOTORS COMPANY
