USB Receptacle Replacement
WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY USB Receptacle Replacement

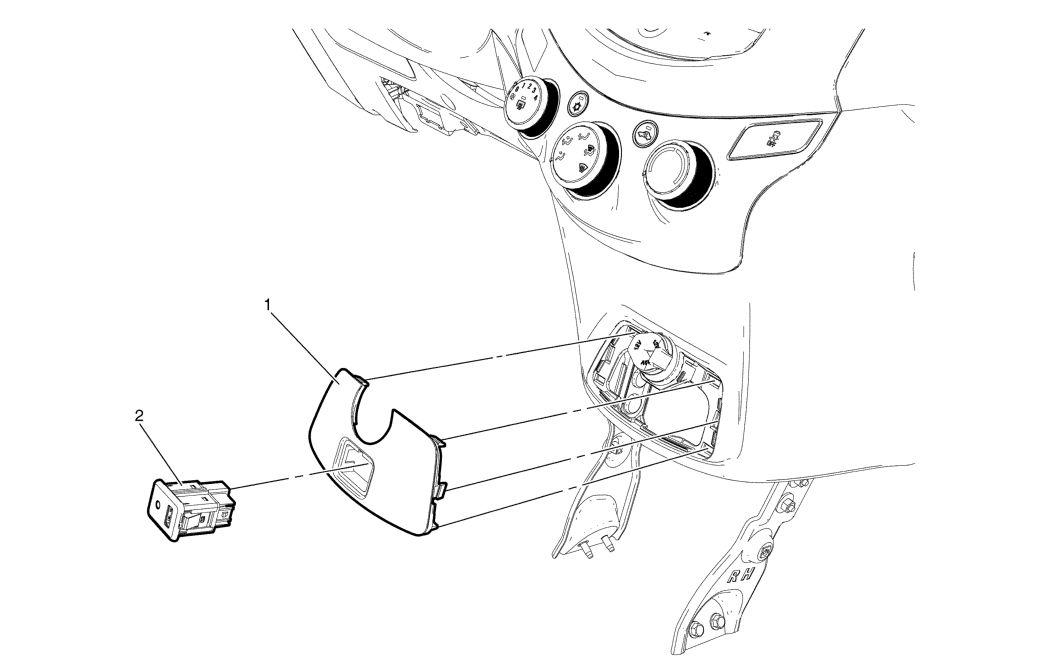

| Callout |
Component Name |
| 1 |
USB Receptacle and Cover
Procedure
Remove the USB receptacle cover from the instrument panel by pushing out the taps behind the cover. |
| 2 |
USB Receptacle
Procedure
Remove the USB receptacle from the cover. |
