Radio Replacement

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

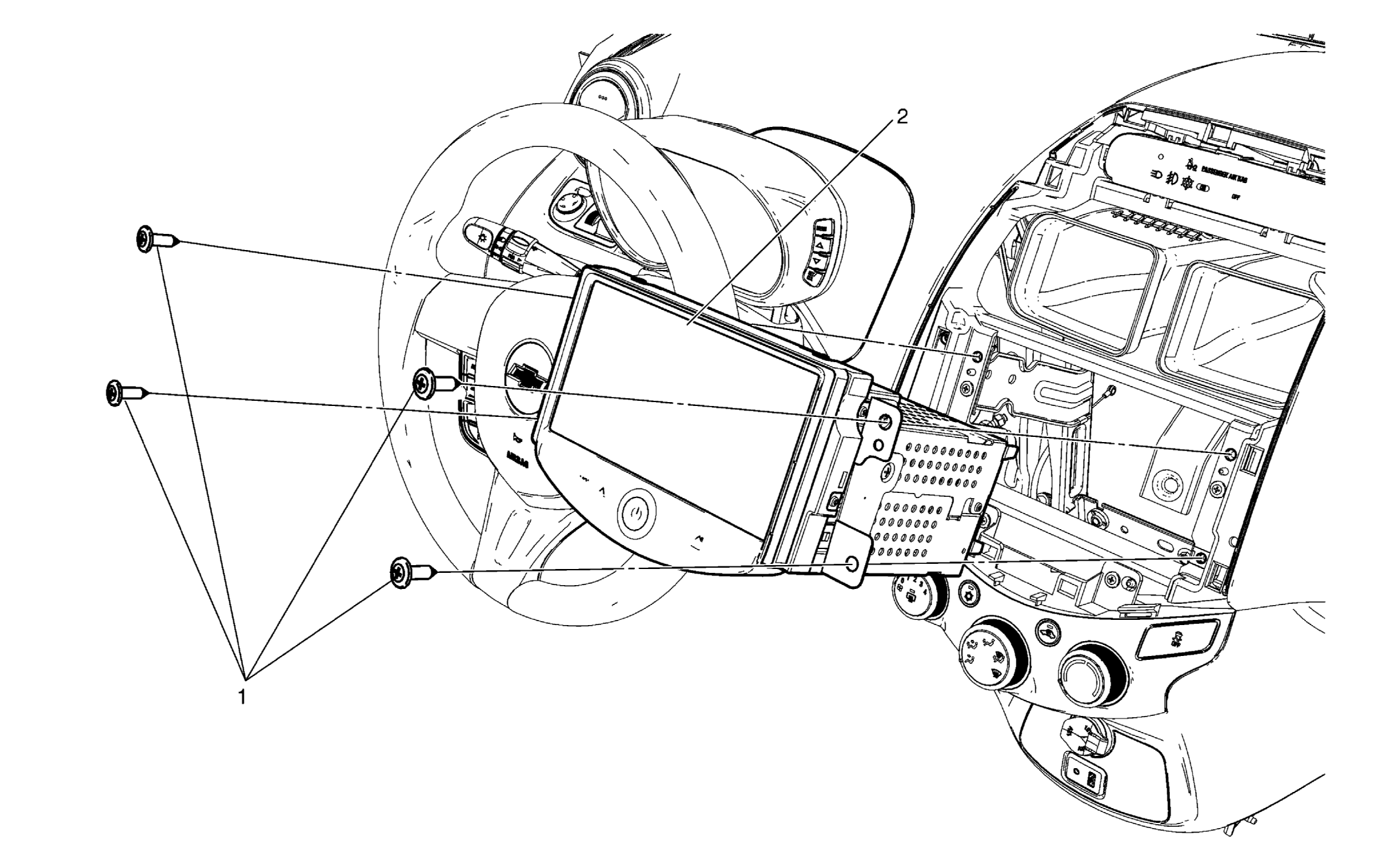

Fig 1: Radio Assembly

Courtesy of GENERAL MOTORS COMPANY

Radio Replacement

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedures Disconnect the battery negative cable. Remove I/P center molding. Refer to Instrument Panel Center Molding Replacement .
1	Radio Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 3 (27 lb in)
2	Radio Assembly Procedure Disconnect electrical components. After replacement, refer to Control Module References for programming and setup information.

Callout

Component Name

WARNING:

Refer to Battery Disconnect Warning .

Preliminary Procedures

Disconnect the battery negative cable.
Remove I/P center molding. Refer to Instrument Panel Center Molding Replacement .

Radio Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
3 (27 lb in)

Radio Assembly

Procedure

Disconnect electrical components.
After replacement, refer to Control Module References for programming and setup information.
