Stop Lamp Switch Replacement

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

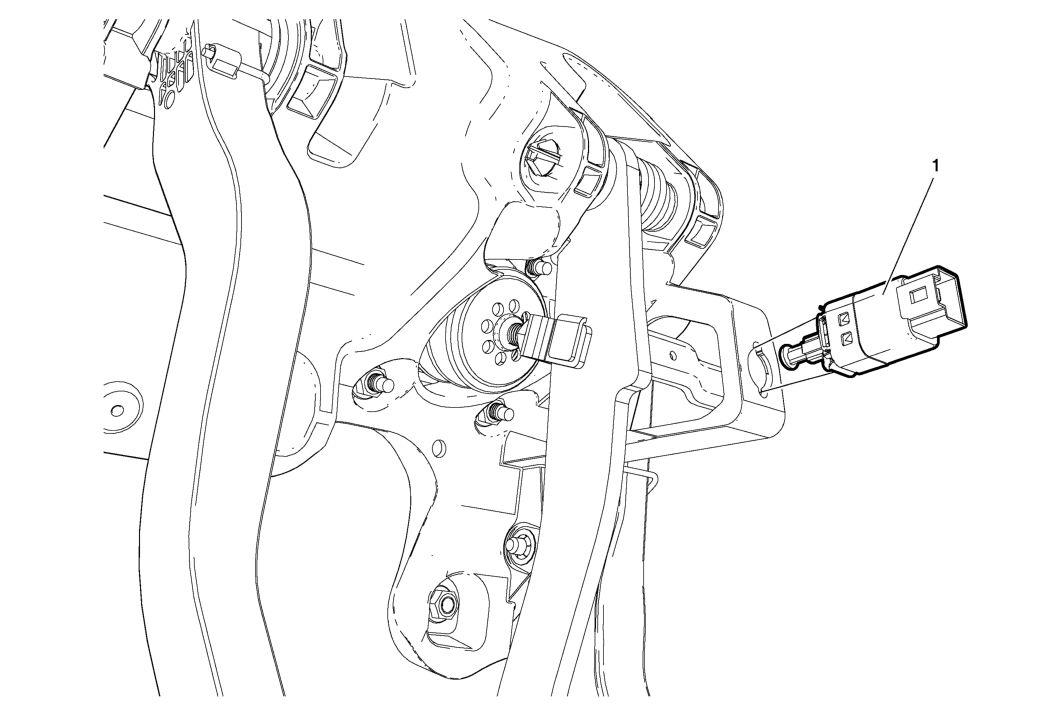

Fig 1: Stop Lamp Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column opening filler. Refer to Steering Column Opening Filler Replacement .
1	Stop Lamp Switch Procedure Disconnect the electrical connector. Rotate the stop lamp switch counterclockwise to remove from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the steering column opening filler. Refer to Steering Column Opening Filler Replacement .

Stop Lamp Switch

Procedure

Disconnect the electrical connector.
Rotate the stop lamp switch counterclockwise to remove from the bracket.
