Installation Procedure

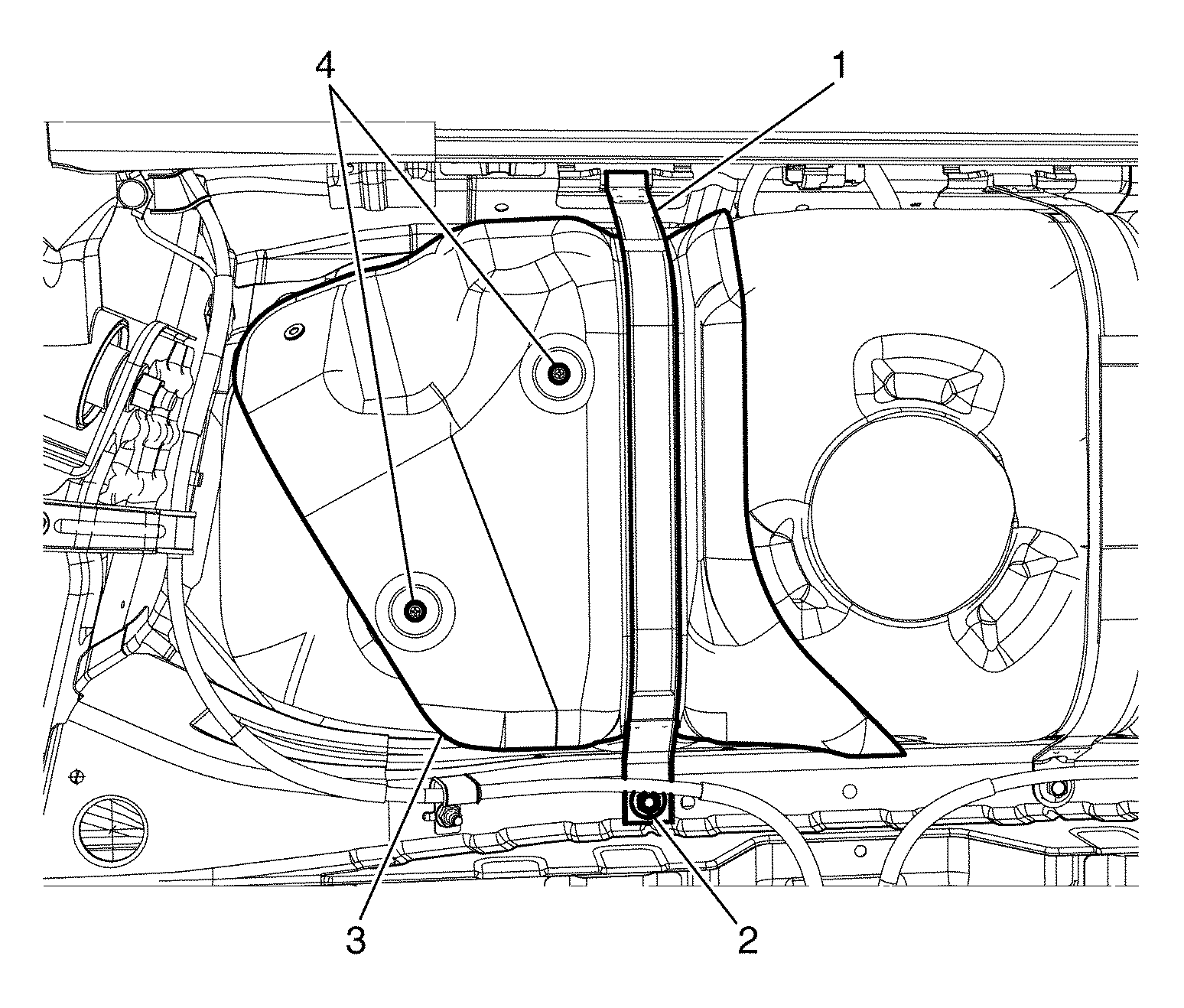

    Fig 1: Fuel Tank Strap Retaining Bolt And Band
    GM3439674Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel tank heat shield (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 fuel tank heat shield retaining screw bolts (4) and tighten to 6 (53 lb in).
  3. Install the fuel tank strap band (1) and tighten the fuel tank strap retaining bolt (2) to 20 (15 lb ft).
  4. Install the exhaust pipe - rear muffler nut. Refer to Exhaust Pipe Replacement (LFM) .
