Instrument Panel Multifunction Switch Replacement

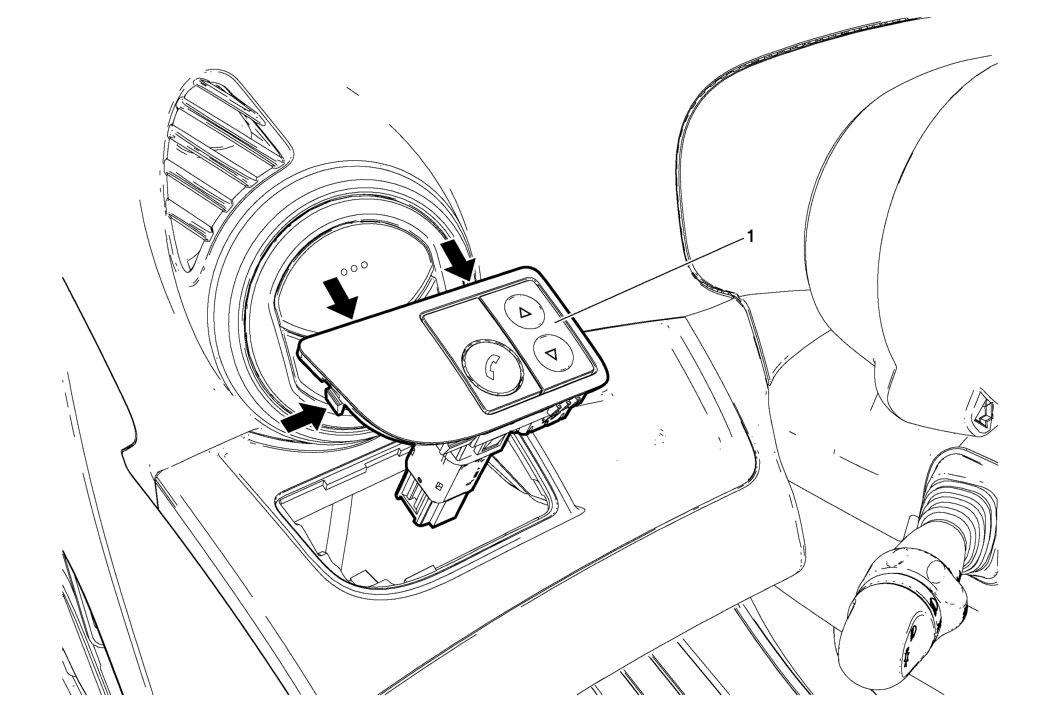

Fig 1: Instrument Panel Multifunction Switch
GM2309401Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Multifunction Switch Replacement

Callout Component Name
1 Instrument Panel Multifunction Switch Assembly

Procedure

  1. Disconnect the tabs (the arrows in the illustration) carefully to prevent the damage for the switch and molding.
  2. Disconnect the electrical connector.
