Installation Procedure

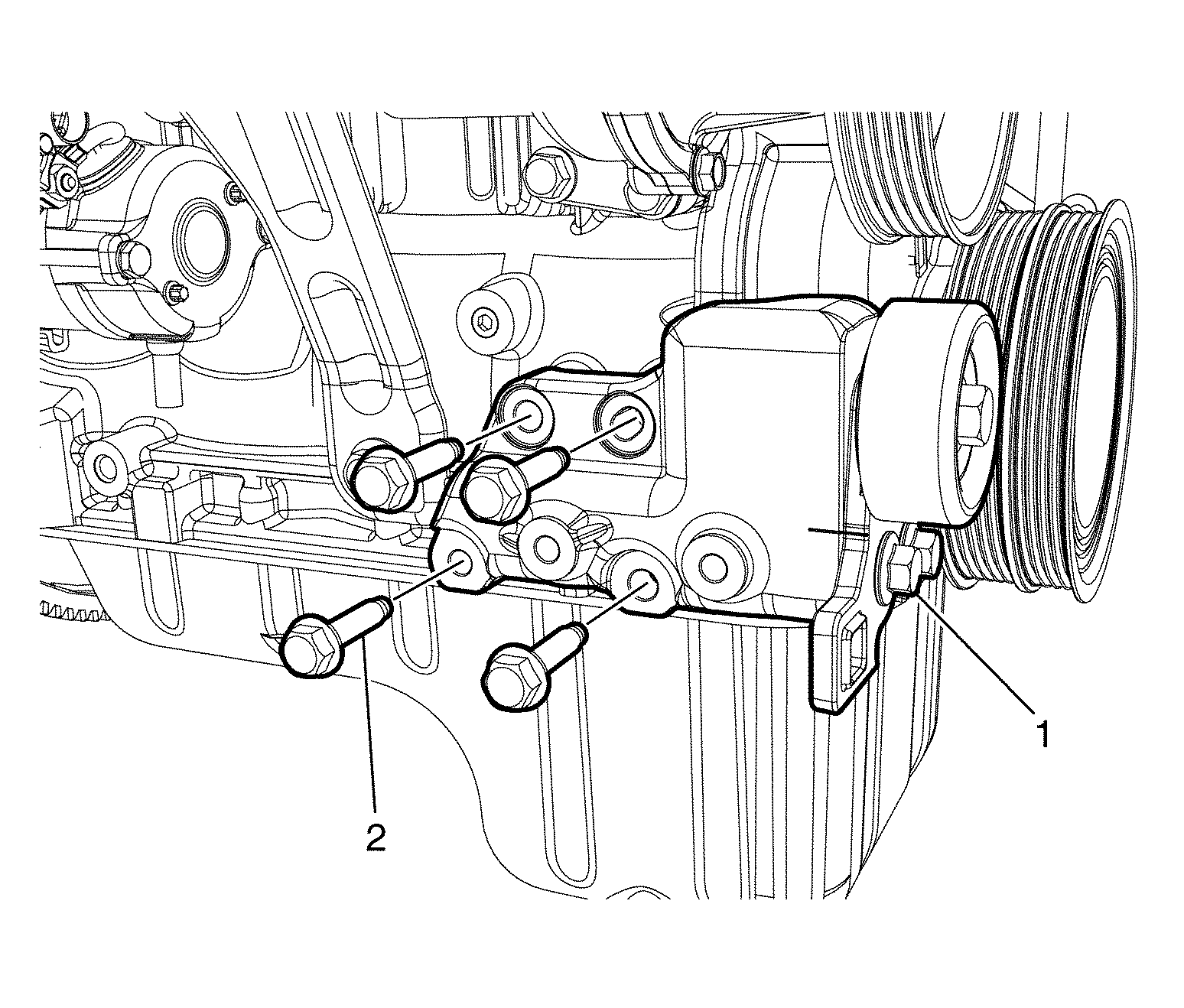

    Fig 1: Generator Bracket
    GM3416017Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator bracket (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Tighten the 4 generator bracket retaining bolts (2) to 22 (16 lb ft).
  3. Install the generator. Refer to Generator Replacement .
