Removal Procedure

  1. Remove the battery. Refer to Battery Replacement .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Remove the battery tray. Refer to Battery Tray Replacement .

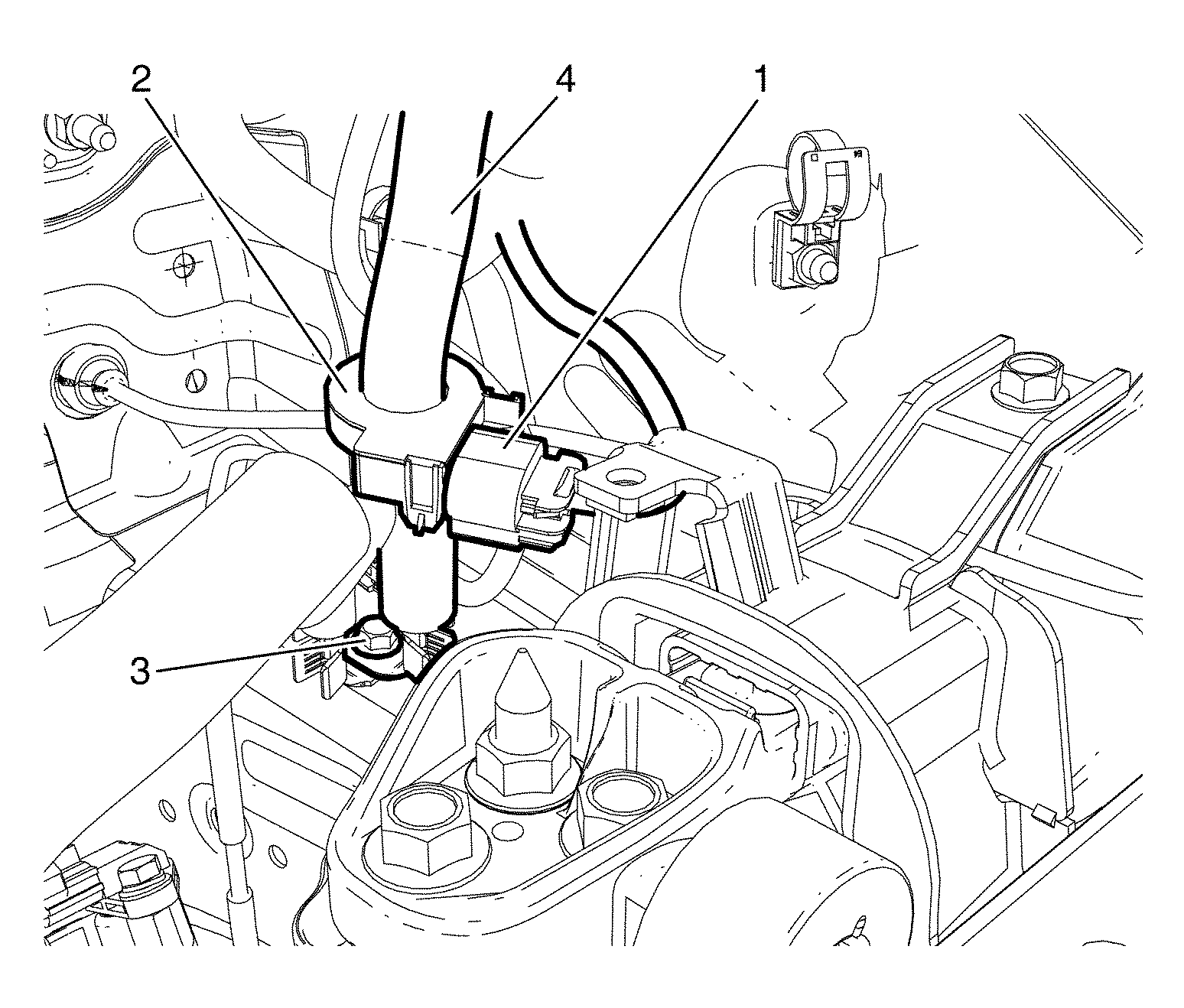

    4. Fig 1: Body Harness Connector
    GM3611688Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the body harness connector (1) from the battery current sensor (2).
  5. Remove the battery negative ground cable fastener (3) and the battery negative cable (4) from the frame rail.
    6. Fig 2: Battery Current Sensor
    GM2917957Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the orientation of the battery current sensor when removing.

  6. Remove the battery current sensor (2) from the battery negative cable (1).
