Front Side Door Window Outer Sealing Strip Replacement

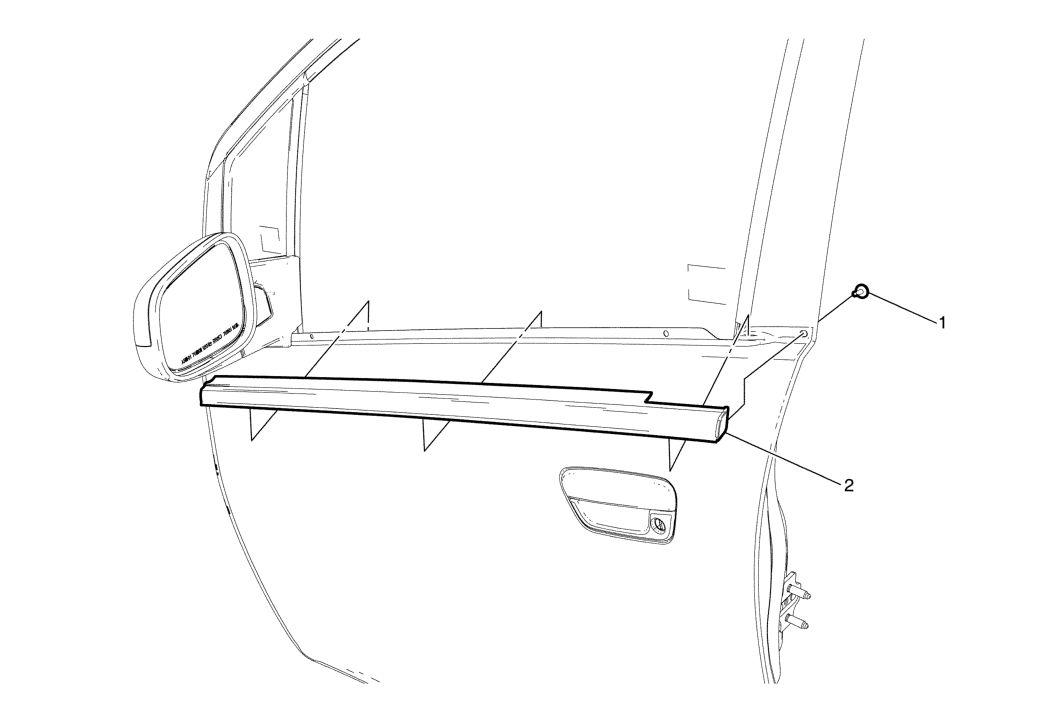

Fig 1: Front Side Door Window Outer Sealing Strip
GM2309149Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Outer Sealing Strip Replacement

Callout Component Name
1 Front Side Door Window Outer Sealing Strip Screw (Qty: 1)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Side Door Window Outer Sealing Strip Assembly
