Secondary Input Speed Sensor Replacement

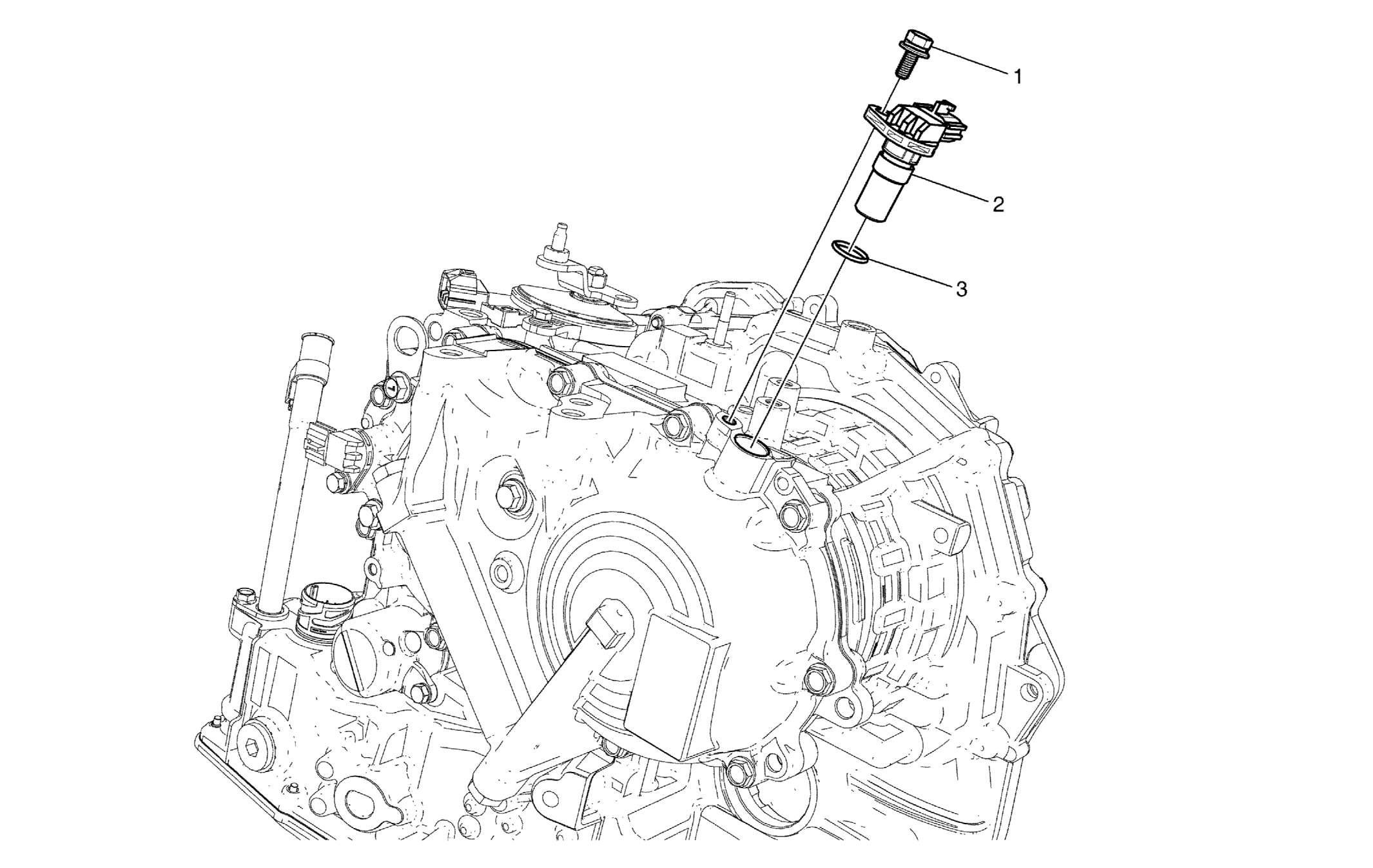

Fig 1: Secondary Input Speed Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the battery tray. Refer to Battery Tray Replacement .
1	Secondary Input Speed Sensor Bolt (Qty: 1) CAUTION: Refer to Fastener Caution . Procedure Disconnect the secondary input speed sensor electrical connector. Tighten 6 (53 lb in)
2	Secondary Input Speed Sensor
3	Secondary Input Speed Sensor O-Ring Seal NOTE: Do not reuse the secondary input speed sensor O-ring seal.
