Output Speed Sensor Replacement
Output Speed Sensor Replacement

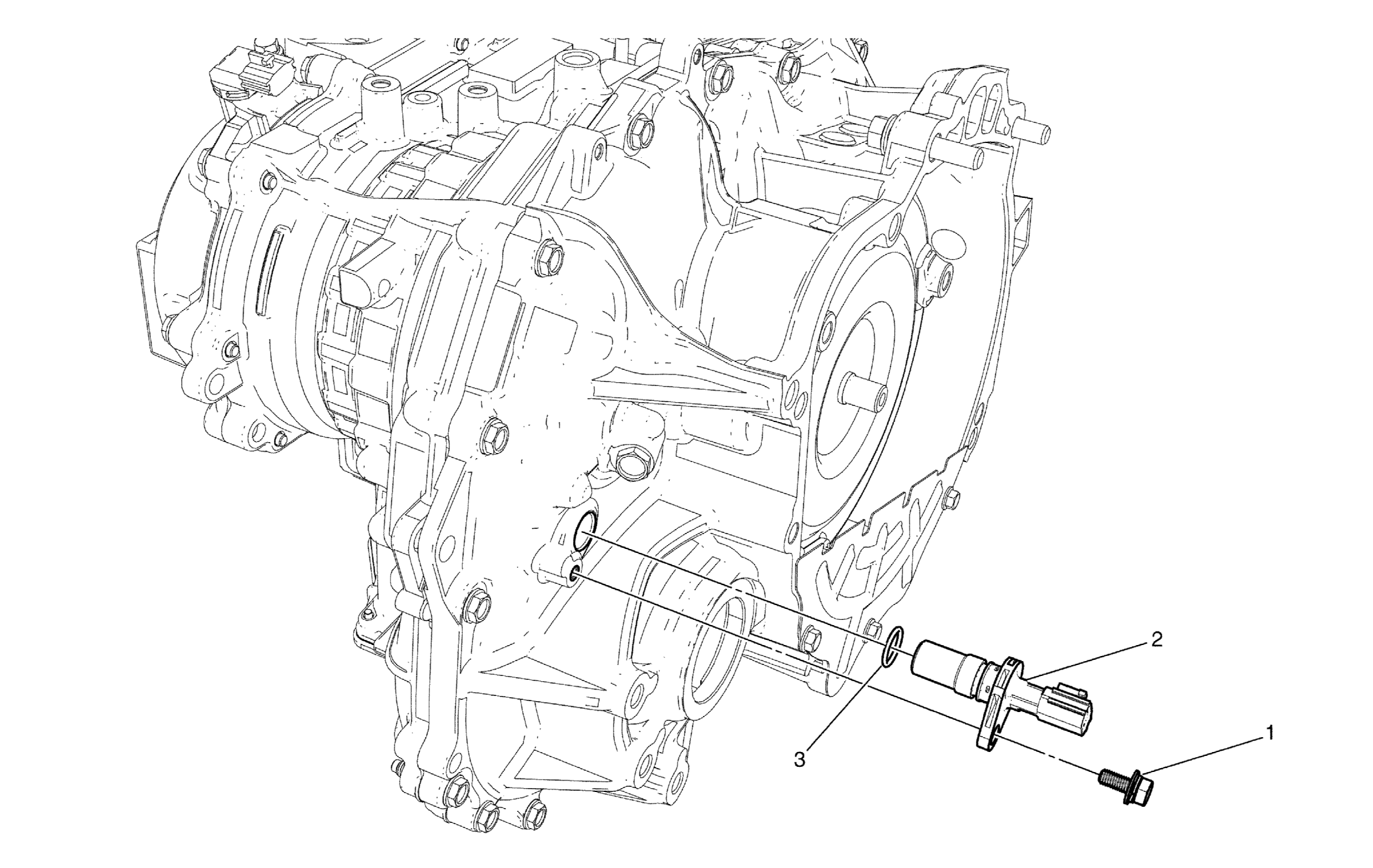

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Output Speed Sensor Bolt (Qty: 1)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the output speed sensor electrical connector. Tighten 6 (53 lb in) |
| 2 | Output Speed Sensor |
| 3 | Output Speed Sensor O-Ring Seal
NOTE:
Do not reuse the output speed sensor O-ring seal. |
