Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

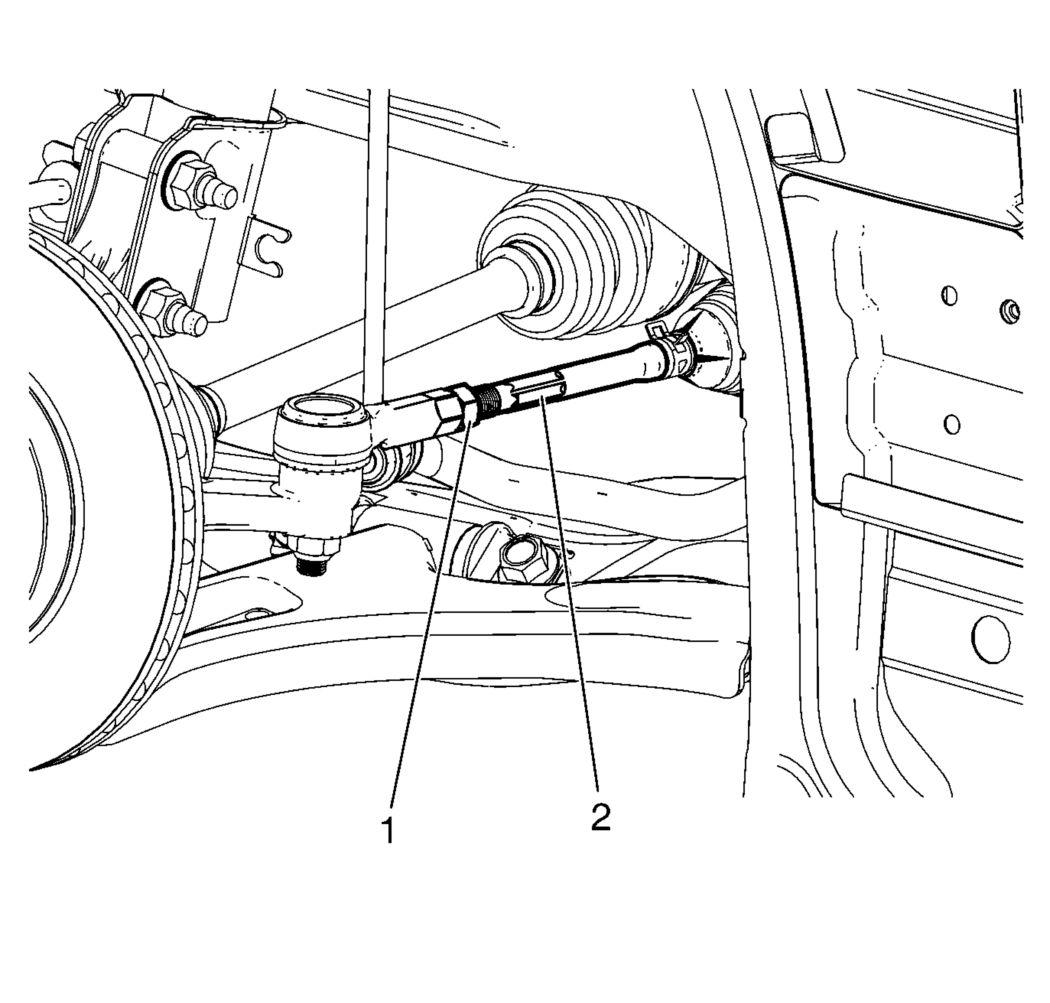

    Fig 1: Tie Rod Jam Nut
    GM2327267Courtesy of GENERAL MOTORS COMPANY
  1. Ensure that the steering wheel is set in a straight ahead position and centered.
  2. Loosen the tie rod jam nut (1).
  3. Adjust the toe to specification by turning the adjuster (2). Refer to Wheel Alignment Specifications .
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the tie rod jam nut (1) and tighten to 75 N.m (55 lb ft).
